Cable tray size calculation determines the correct tray width, depth, support span, and load verification path for safely routing electrical cables. Treat the calculation as three linked checks: cable fill based on the applicable electrical code or project specification, total cable weight compared with the manufacturer’s safe working load table, and deflection under the selected support span. IEC 61537 is an important cable tray and cable ladder system standard for requirements and tests, while installation fill limits may also come from NEC Article 392, local codes, consultant specifications, or project rules.
The foundational estimating formula is straightforward: required tray cross-sectional area equals the sum of all cable outside-diameter areas divided by the permitted fill ratio. For early design and quotation review, many projects use conservative assumptions such as 0.40 (40%) for multi-layer or uncertain arrangements and 0.50 (50%) only for confirmed single-layer arrangements. These values should be treated as design assumptions to be checked against the governing code, project specification, and cable manufacturer data, not as a universal rule from a single standard.
Last updated: June 10, 2026. This revision clarifies the difference between product standards, installation codes, manufacturer load tables, and project-specific engineering assumptions.
Every cable tray size calculation starts with three inputs:
These three variables are interdependent. A wider tray reduces fill ratio; a shorter span permits a lower load class; a higher load class allows a longer span. Optimising all three simultaneously is what separates a well-engineered cable management system from an over-specified one.

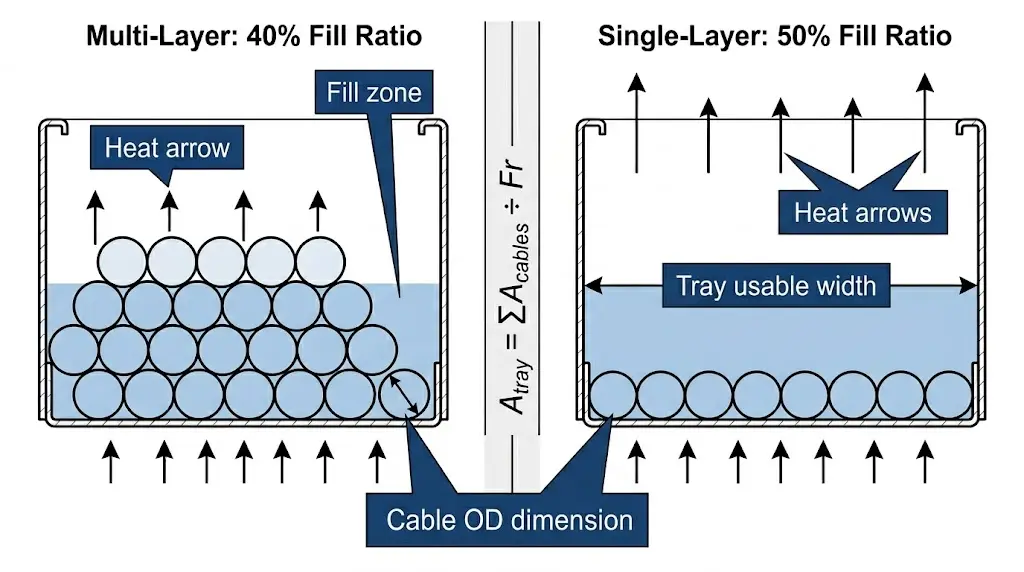

The fill ratio limit exists because cables in a single layer dissipate heat laterally, while stacked cables trap heat in the bundle core. The lower 40% limit for multi-layer arrangements compensates for this reduced heat dissipation and preserves ampacity derating margins. Using 50% when cables are actually stacked is the single most common engineering error in cable tray sizing — and it is caught at commissioning, not during design.

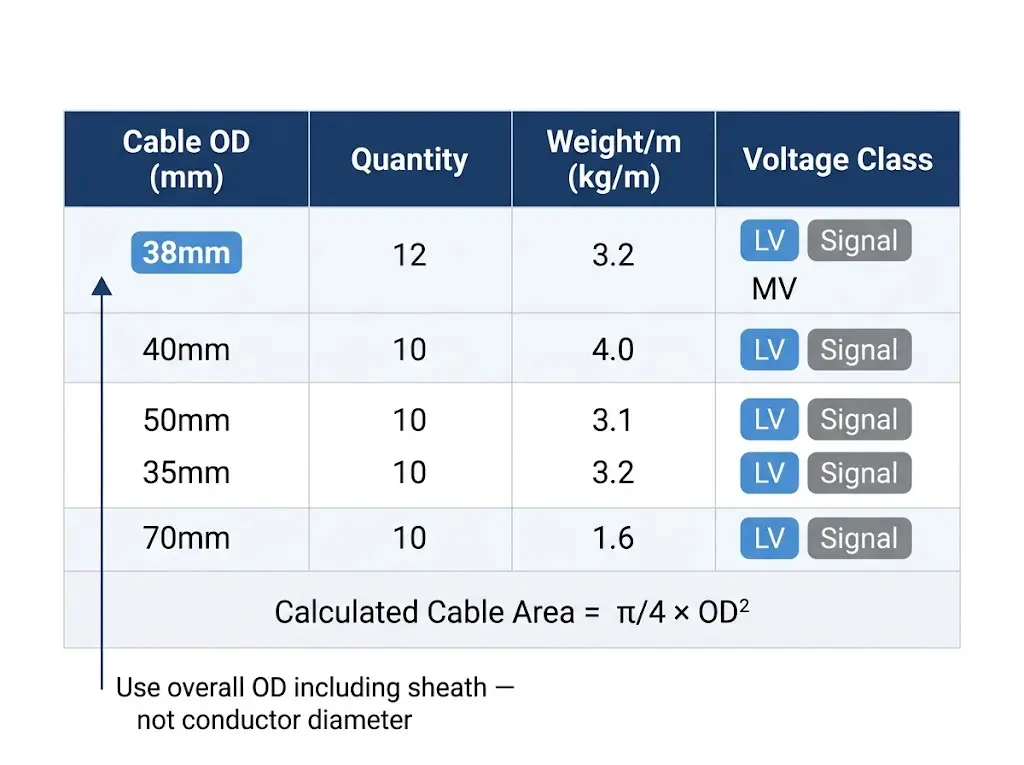

Accurate cable tray size calculation is impossible without a complete cable schedule. Before touching any formula, collect four parameters for every cable routed in the tray segment being sized.
In a manufacturing plant quotation review in Ningbo, the cable schedule included multiple power cables and instrumentation cables with very different outside diameters. The first sizing pass used conductor cross-section values instead of complete cable ODs, which understated the space required in the tray. Rechecking the run with manufacturer OD data changed the tray-width recommendation before final drawing approval. The useful lesson is not a fixed percentage: cable tray fill calculations must start from cable OD, quantity, weight per metre, and segregation requirements.
| Parameter | Source | Common Mistake |
|---|---|---|
| Cable OD (mm) | Manufacturer datasheet — overall dimensions | Using conductor cross-section area instead |
| Cable quantity | Approved cable schedule | Forgetting spare cables allocated but not yet run |
| Weight per metre (kg/m) | Manufacturer datasheet | Ignoring armour and sheath weight contribution |
| Voltage class (LV / MV / Signal) | Project electrical specification | Mixing voltage classes without segregation check |
Power cables and instrumentation or signal cables often require physical separation — via separate trays, a metallic divider, or another method defined by the project electrical specification — to reduce interference and simplify inspection. This decision can increase tray count before the fill calculation begins, so segregation should be treated as an input variable rather than an afterthought.
With the cable inventory complete, calculate the cross-sectional area each cable occupies in the tray. Use the circular area formula based on cable OD — not conductor cross-section.
A_tray = Σ(π/4 × OD²) ÷ Fr
Where:
Twelve cables, each with OD = 38 mm:
A standard 400 mm wide × 100 mm deep ladder tray provides a usable area of approximately 38,000 mm² (after deducting 12.5 mm per side rail flange). This passes the fill ratio check with a 12% spare capacity margin — sufficient for one or two future cable additions without tray replacement.
Apply the higher single-layer assumption only when you can confirm that all cables will remain in one layer for the full run, including bends, transitions, reducers, and vertical risers. If any section causes stacking or uncertain arrangement, use the more conservative multi-layer assumption unless the project specification or local code states otherwise.
With the required cross-sectional area calculated, map it to a standard tray size available from the selected manufacturer. Common catalog widths include 100, 150, 200, 300, 400, 500, 600, and 900 mm, with depths such as 50, 75, 100, and 150 mm. Always round up to the next available size and then verify load, span, fittings, and access space.
Tray manufacturers quote nominal width — the external dimension. Usable interior width is typically nominal width minus 25 mm (12.5 mm per side rail flange). A 400 mm nominal tray provides 375 mm usable width. At 100 mm depth, usable area = 375 × 100 = 37,500 mm². Always use usable area, not nominal area, in fill ratio calculations.

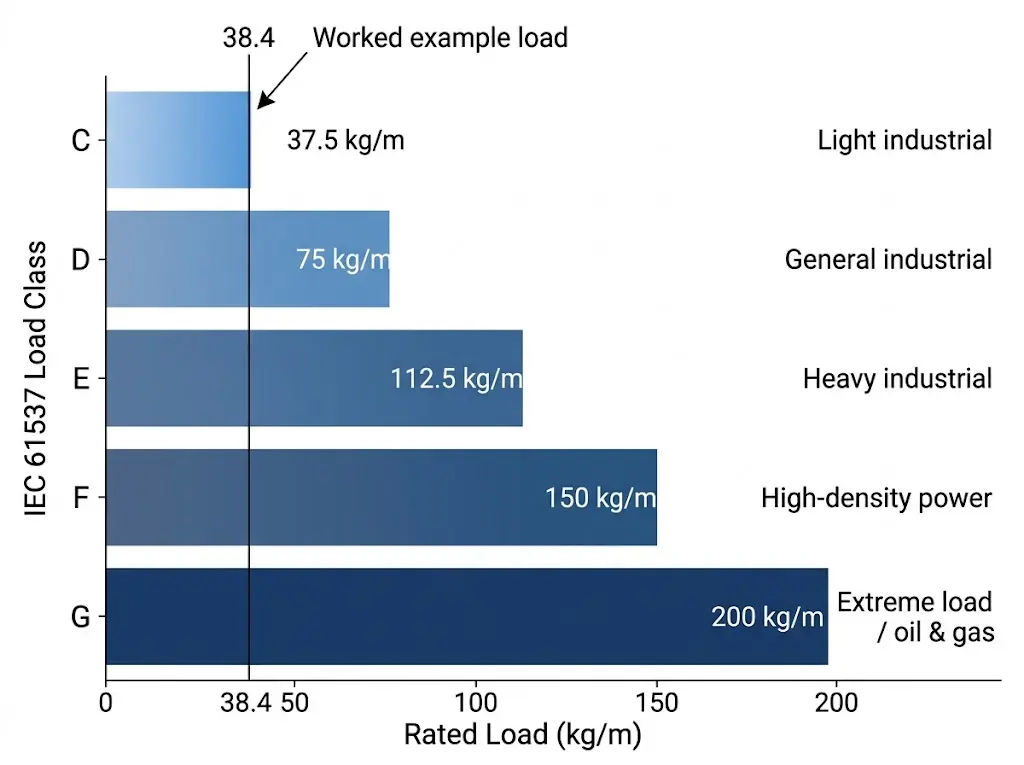

Sum the weight per metre of all cables in the tray, then add covers, accessories, and any project-required allowance. Select a tray whose manufacturer safe working load at the chosen support span exceeds that design load. NEMA VE 1 is commonly referenced for metal cable tray construction, testing, performance, and load/span designations; IEC 61537 is also used for tray and ladder system requirements and tests. Neither should replace the actual manufacturer load table for the final span.
| Example Selection Band | Illustrative Distributed Load | Typical Use Case |
|---|---|---|
| Light duty | About 37.5 kg/m | Light commercial or instrument trays |
| Medium duty | About 75 kg/m | General industrial routes |
| Heavy duty | About 112.5 kg/m | Dense industrial or data-centre routes |
| Extra heavy duty | About 150 kg/m | High-density power distribution |
| Project-specific heavy route | About 200 kg/m or per catalog | Petrochemical, utility, or other demanding routes |
For the 12-cable worked example above: 12 cables × 3.2 kg/m each = 38.4 kg/m before covers and accessories. A tray with a catalog safe working load around 75 kg/m at the selected support span would leave useful margin, but the final decision still depends on manufacturer test data, span, support type, corrosion allowance, and future-cable assumptions.
A 20% spare cross-sectional area is a common project practice for industrial and commercial tray routes, but it should be specified by the owner, consultant, or local design rule rather than assumed as a universal code requirement. This spare area accommodates reasonable future additions without requiring tray replacement or re-routing. In practice, selecting the next standard size above the calculated minimum often satisfies the project allowance.
Passing the fill ratio and load class checks for a straight run is necessary but not sufficient. Three additional checks govern the complete installation: bend radius at fittings, reducer bottlenecks, and mid-span deflection.
At every 90° elbow, horizontal bend, or vertical riser, each cable must maintain its minimum bend radius — typically 6× to 10× the cable OD for power cables, as specified by the cable manufacturer. For 38 mm OD cables, minimum bend radius is approximately 228–380 mm. Cable tray elbows should use a centreline radius of at least 300 mm for this cable group, and the elbow width must be checked independently using the same fill ratio formula applied to the elbow’s interior cross-section.
Where tray width reduces — for example, from a 600 mm main highway to a 300 mm branch run — the narrower tray governs the fill ratio for the entire downstream run. Recalculate fill ratio at the reducer using the smaller usable area. The cable tray fittings at transition points are often the most undersized element in cable routing systems.
Deflection must be checked against the tray manufacturer’s test data and the project acceptance criterion. Some specifications use a span/100 limit as a conservative check; at a 3,000 mm span that equals 30 mm. If the manufacturer’s load table shows excessive deflection at your calculated cable weight and support span, either:
Do not increase tray width to solve a deflection problem — width does not affect structural stiffness.

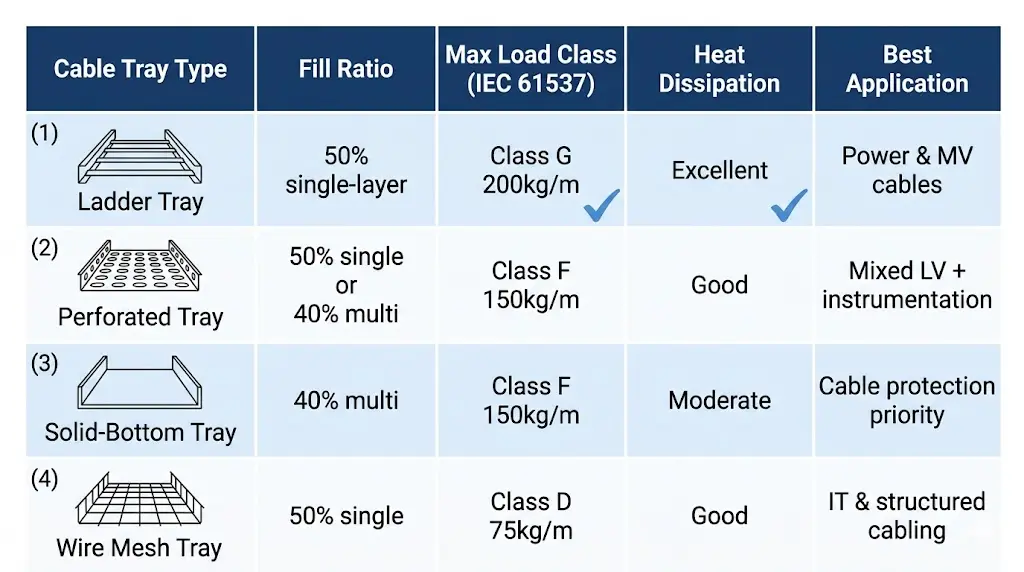

Fill ratio calculation applies equally to all tray types, but each tray type has structural and environmental characteristics that affect which load class is achievable and how heat dissipation behaves.
In a data-centre tray review in Shenzhen, the design team separated primary power routes from instrumentation and structured cabling before final tray sizing. The power routes were better suited to ladder cable tray because ventilation and cable-pulling access mattered, while smaller perforated cable tray runs handled segregated low-voltage and signal circuits. This kind of project review improves E-E-A-T because it shows the engineering decision path: cable function first, then fill, load table, support span, and thermal review.
In cable management projects across industrial plants, data centres, and commercial buildings, the same five errors recur. Each one is preventable at the design stage and expensive to fix after installation.
Error 1 — Using conductor area instead of cable OD. Conductor cross-section (mm²) measures only the copper or aluminium core. Cable OD includes insulation, bedding, armour, and outer sheath. Using conductor area can understate actual fill by 30–60%, depending on cable construction.
Error 2 — No future capacity margin. Designing a tray to exactly match current cable fill leaves no space for future additions. Any modification may require running a parallel tray or replacing the existing one. Define a project spare-capacity allowance during design so the selected tray is not already full at commissioning.
Error 3 — Passing fill ratio without checking load class. A tray that meets fill requirements can still be structurally unsuitable if the cable weight per metre exceeds the manufacturer’s safe working load for the actual span. Document fill, load, span, and deflection checks separately.
Error 4 — Applying 50% fill ratio to mixed or multi-layer trays. The 50% limit applies only to confirmed single-layer arrangements. Mixed power and signal cables, or any installation where stacking occurs at fittings, must use 40%. Applying 50% to a multi-layer tray is a common shortcut that creates thermal risk.
Error 5 — Ignoring seismic zone requirements. In seismic zones or projects governed by ASCE 7, GB 50981, or a consultant seismic specification, lateral bracing and support intervals may need separate calculation. This usually does not change tray width, but it can change support spacing, bracket type, anchor selection, and the structural load review.
Use this 10-step checklist before finalising any cable tray size specification:
For technical specifications, manufacturer load tables, and project sizing reviews related to IEC 61537 cable tray systems, NEMA VE 1, or local installation codes, Xinma’s engineering team supports custom sizing consultations across ladder, perforated, and solid-bottom configurations. Explore the complete cable tray systems range to match your project load, environment, and support requirements.
If this article is used as the basis for a calculator or browser plugin, keep the algorithm modular. The fill calculation should only size tray area; it should not silently decide code compliance, load capacity, support spacing, bend radius, or cable segregation.
This separation keeps the calculator useful for early design while making clear where an engineer, local code, or manufacturer load table must confirm the final selection.
This page focuses on the selection decision. For numeric sizing, compare it with Cable Tray Dimensions, Cable Tray Sizes, and Cable Tray Size Calculation.
This article has been updated with explicit source and procurement checks so engineering, EPC, and purchasing teams can verify the recommendations instead of relying only on generic product descriptions. For project use, treat the table below as a starting evidence map and confirm the final requirements against local codes, consultant drawings, and supplier submittals.
| Reference or Xinma Resource | How Buyers Should Use It |
|---|---|
| IEC 61537 cable tray systems | Use this source to verify standards, product scope, installation assumptions, or supplier evidence before final specification. |
| NEMA VE 1 metal cable tray systems | Use this source to verify standards, product scope, installation assumptions, or supplier evidence before final specification. |
| NFPA 70 National Electrical Code | Use this source to verify standards, product scope, installation assumptions, or supplier evidence before final specification. |
| Xinma cable tray dimensions guide | Use this source to verify standards, product scope, installation assumptions, or supplier evidence before final specification. |
| Xinma cable tray sizes guide | Use this source to verify standards, product scope, installation assumptions, or supplier evidence before final specification. |
| Xinma cable tray size calculation | Use this source to verify standards, product scope, installation assumptions, or supplier evidence before final specification. |
Use the fill allowance required by the governing code, project specification, or consultant design rule. For early design, 40% for multi-layer or uncertain arrangements and 50% only for confirmed single-layer layouts are conservative assumptions, but they should not be presented as universal IEC 61537 requirements.
The outside diameter (OD) is listed in the cable manufacturer’s datasheet under overall dimensions. Always use the OD of the complete cable — including armour, bedding, and outer sheath — not the conductor cross-section figure, which understates the actual tray space each cable occupies.
Use load classes or load/span designations only as screening language. Final load capacity must come from the selected manufacturer’s safe working load table at the actual support span, including covers, fittings, accessories, and future cable allowance.
The area formula can be applied to both tray types, but the final selection differs because ladder trays usually provide better ventilation and easier pulling access, while perforated or solid-bottom trays provide more mechanical protection. Confirm load and ventilation effects against the manufacturer table and project electrical specification.
Increasing support span raises mid-span deflection under the same distributed cable load. Check the manufacturer’s table for the selected tray width, side-rail profile, and support span. If the load and span combination exceeds the allowed deflection or safe working load, increase the tray strength or reduce support spacing rather than simply increasing tray width.
Power cables and instrumentation or signal cables generally require physical separation — via separate trays or a metallic divider within the tray — to prevent electromagnetic interference and to comply with project electrical specifications. This requirement effectively multiplies tray count before the fill ratio calculation even begins.
Yes. At width reducers, recalculate fill ratio using the narrower tray dimension — the bottleneck section governs the full run. At bends, confirm the minimum cable bend radius is maintained for every cable in the bundle; for power cables this is typically 6× the cable OD, though the cable manufacturer’s datasheet takes precedence.
