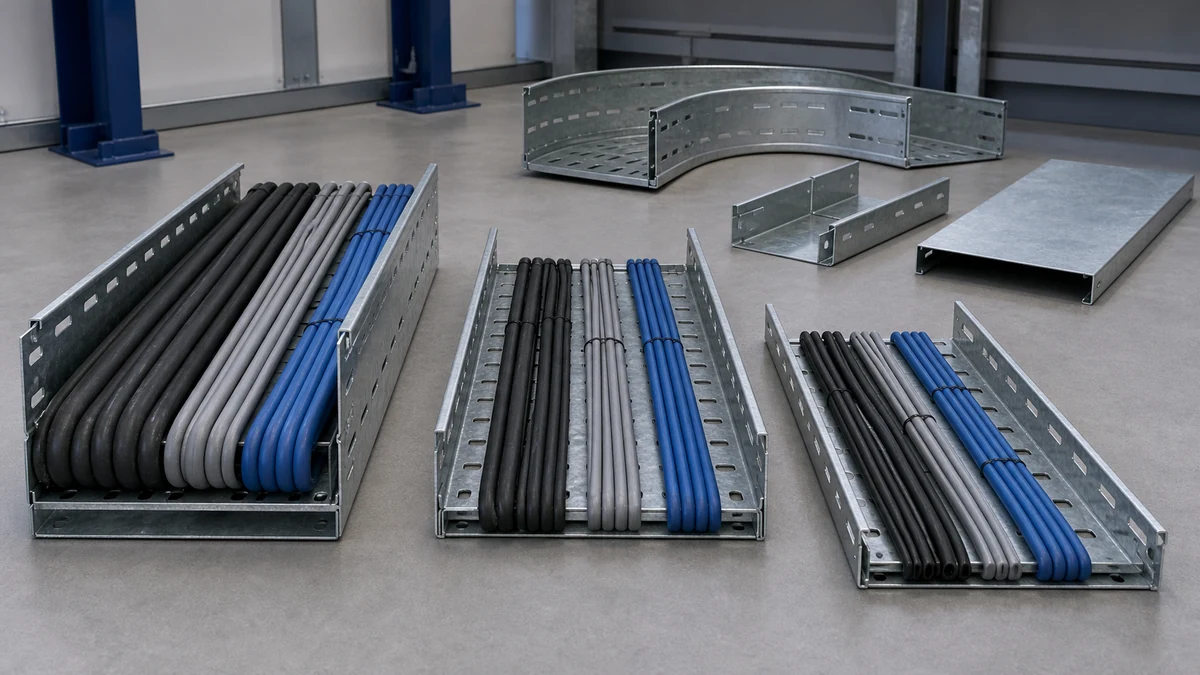

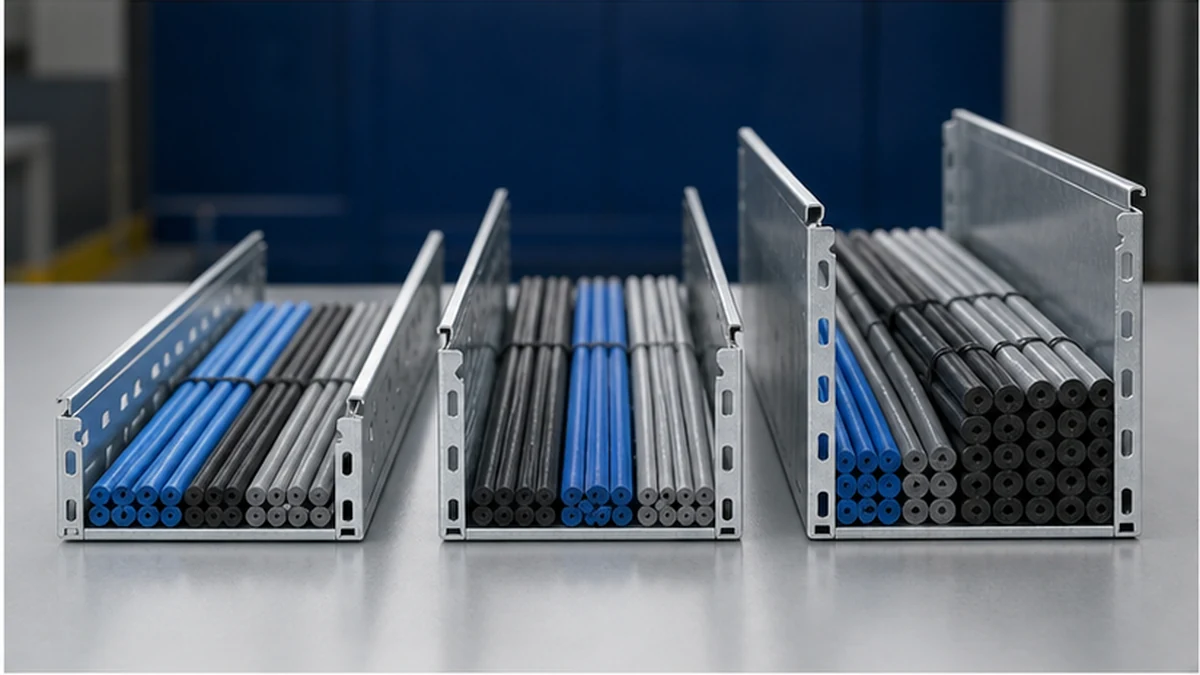

Cable tray depth is the usable sidewall height that retains and organizes the assigned cable assembly. It is frequently summarized as a single capacity number, but that framing is incomplete. The selected depth must work alongside cable outside diameters, permitted bundle arrangement, divider lanes, covers, fittings, access requirements, support positions, and the route’s future-change allowance. A deeper tray creates more containment space in principle, yet it can also affect fitting geometry, cover compatibility, route clearance, and the practical access needed during installation and maintenance. Treating depth as an isolated dimension rather than a system property leads to coordination problems that are difficult to resolve after cable pulling begins.
Establish the tray family, width, material, and fitting range before fixing a side rail height. The full cable tray system range provides a starting point for that selection sequence.
Depth selection is only as reliable as the input data behind it. Before assigning a side rail height, compile the following for every route segment:
| Input | What to Record |
|---|---|
| Cable schedule revision | Issue date and applicable route segments |
| Outside diameter per cable | Measured or verified manufacturer value |
| Quantity per service group | Confirmed against current scope |
| Required segregation | Service classification and spacing rule |
| Planned arrangement | Single-layer, controlled multi-layer, or compartmented |
| Future capacity allowance | Explicit percentage or reserved lane, not a general margin |
| Fitting nodes | Each elbow, tee, reducer, riser, drop-out, and entry |
| Cover and divider intent | Required, optional, or excluded per zone |
Record the coordination drawing revision alongside each selection. If the cable schedule changes, the route description is the document that triggers a depth review.
Nominal tray depth shown in a product catalog is not automatically equal to usable cable routing height. Base details, sidewall returns, divider mounting hardware, hold-downs, splice plates, and cover engagement clips can all reduce the clear space available to the cable bundle. At a change in direction, the cable group may occupy more vertical space than it requires on a straight run because individual cables spread or stiffen through the bend radius.
The design calculation should identify the clear routing height separately from the catalog dimension and show the deductions applied. Where a specific accessory occupies part of the sidewall zone, dimension that accessory in the coordinated drawing rather than assuming it fits within the nominal profile.
IEC 61537 addresses cable tray and cable ladder systems as manufactured products. The IEC 61537 publication should be read alongside the project’s electrical installation documents and cable-design specifications. It is not a cable ampacity rule or a segregation requirement, and it should not be cited as the basis for a capacity claim without also stating the applicable project conditions.
Select a side rail height that keeps the approved cable bundle within the intended route while preserving the access needed for safe pulling, tie-down, and inspection. The following factors each warrant a check at the design stage:
Cable retention and future capacity are distinct questions. A route may have adequate physical height for the current bundle but no orderly method for adding cables later. Unused vertical space may also be reserved for a cover transition, a planned divider, or maintenance access rather than additional conductors. Document the purpose of any reserved space explicitly in the route design so it is not reused informally during installation.
Use the table below as a structured prompt during the design review. No row produces a final depth independently; each row identifies a condition to verify before the selection is confirmed.
| Decision Point | Question to Confirm | If Unresolved |
|---|---|---|
| Bundle height | Does the sum of stacked cable ODs, with arrangement factor, fit within usable routing height? | Recalculate with current ODs; do not estimate |
| Cover clearance | Does the selected cover engage correctly above the cable bundle? | Check cover model against tray model before ordering |
| Divider lane width | Does the depth allow the divider to create the required lane height? | Confirm divider model fits selected side rail height |
| Fitting transition | Is depth maintained through all elbows, tees, and reducers on the route? | Identify the governing node and redesign that fitting |
| Support hardware | Do hangers, brackets, and splice plates clear the cable access zone? | Coordinate hardware positions with the routed bundle |
| Future allocation | Is reserved capacity documented as a lane, percentage, or explicit exclusion? | Record the basis; do not leave it as a general assumption |
| Inspection access | Can a technician reach cable ties and retainers with the route populated? | Photograph a representative installed section before full pull |
Side rail geometry behaves differently depending on the tray type. On ladder cable tray, the side rail and rung combination must accommodate the selected cable support method, any divider hardware, and cover mounting without the rung spacing becoming the governing constraint. On a perforated system, the sidewall profile, base perforation pattern, and fitting design together influence how cable groups and accessories are fixed; confirm the selected perforated cable tray profile against the project submittal rather than a generic depth label.
The approved system drawing is the governing reference. A product image or a nominal depth listed in a price schedule does not confirm fitting compatibility or cover engagement geometry.

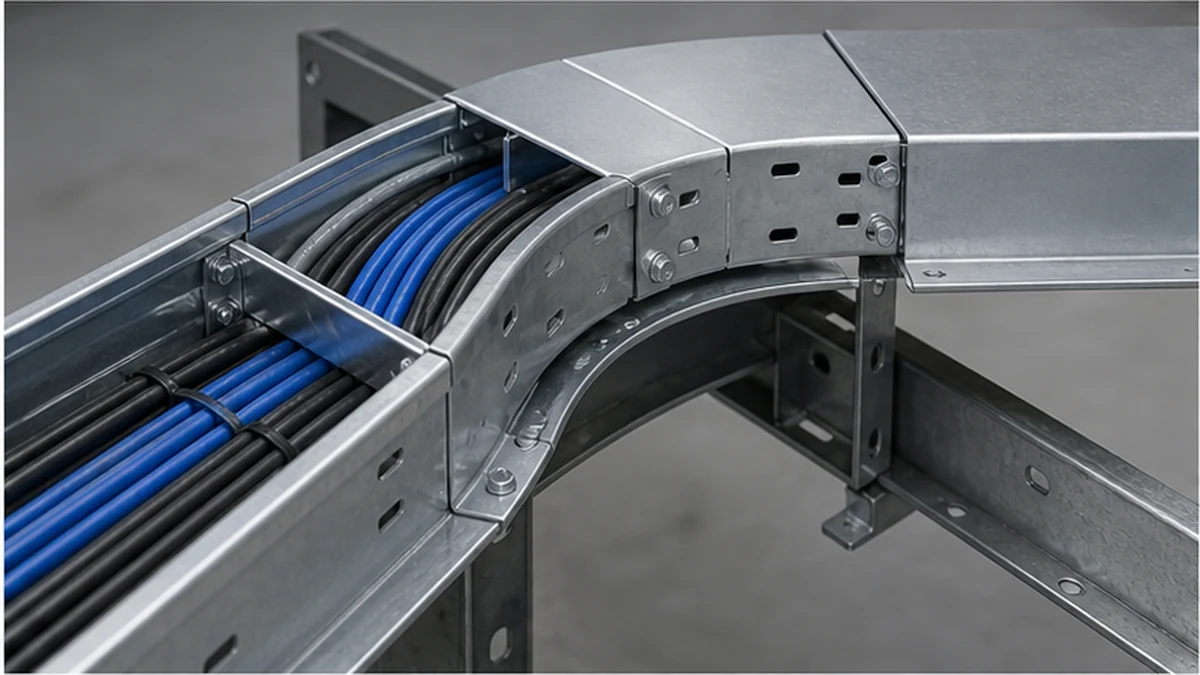

Depth must be maintained continuously through every route node: elbows, tees, reducers, risers, drop-outs, and equipment entries. A taller straight section does not compensate for a reducer or cover transition that creates the governing clearance restriction. Review each fitting node individually and identify any factory fitting, listed accessory, or formally approved adaptation required to keep cable groups controlled and within the planned sidewall height.
For dimensional relationships between width, side height, and cable layout, the cable tray dimensions guide provides planning context. Confirm the exact model, material grade, and fitting geometry in the project submittal before procurement.
Cover and divider selection cannot be deferred until after the tray depth is fixed. Both interact with sidewall height in ways that affect practical usability.
Dividers: Confirm that the divider model fits the selected side rail height and that the resulting lane heights match the cable groups assigned to each lane. A divider that is shorter than the side rail creates a gap through which cables can migrate. A divider that is taller than the usable routing height may conflict with cover engagement.

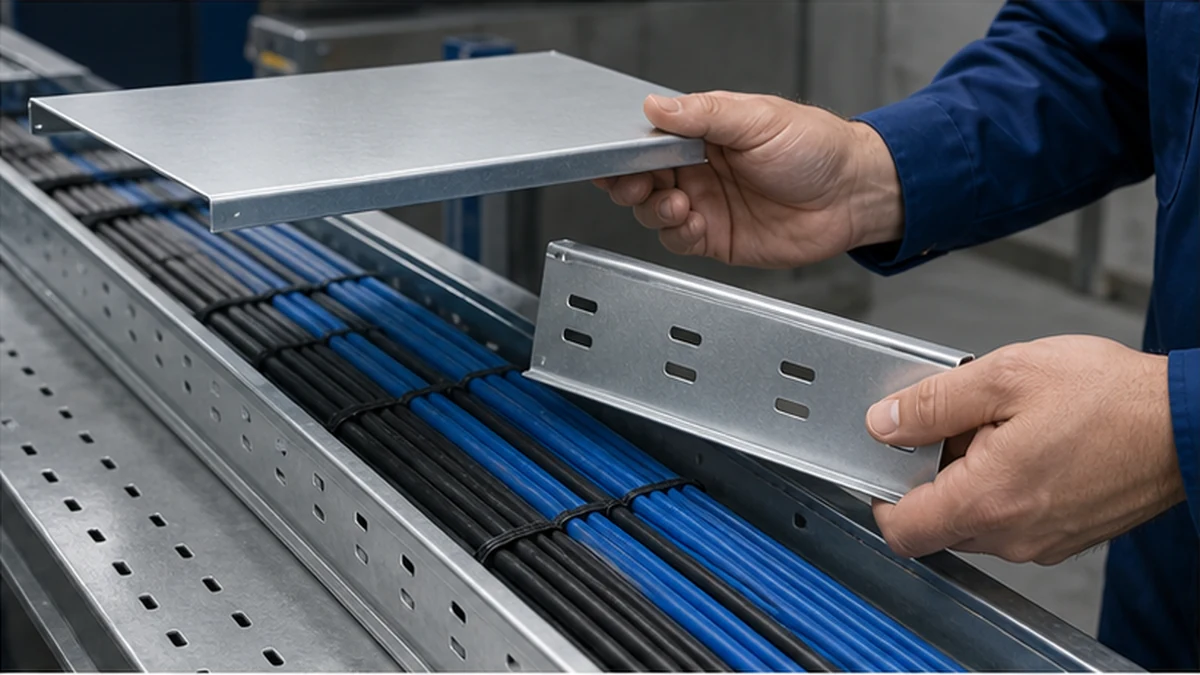

Covers: Verify the cover’s engagement method, clamp clearance, and removal path with the route populated. A cover that cannot be removed after cables are installed prevents maintenance access even if the nominal tray depth appeared adequate at the design stage. Check whether the cover removal requires a specific tool or a minimum clearance above the tray that must be coordinated with structural elements.
Supports: Hanger rods, wall brackets, channel strut, splice plates, and cable cleats can all occupy part of the access zone at a sidewall or fitting. Include those interface dimensions in the coordinated drawing. Inspect a representative installed section before the route is fully populated to confirm that the actual hardware positions match the drawing.
The purchasing and installation package should state the selected width and depth, the usable routing height assumption, the cable groups covered, the permitted future capacity basis, tray type, material, finish, covers, dividers, fittings, and support interface details. Describing a tray as suitable for a particular application without showing the input data and the route condition that was evaluated does not constitute a traceable selection.
When cable quantities, outside diameters, or route geometry change, update the route check and record the revised drawing number. The cable tray size calculation guide offers broader sizing context, but every confirmed selection should cite the current cable schedule revision and coordinated drawing. That link between the selection and its supporting data makes it possible to identify whether the planned side rail height remains valid after scope changes.

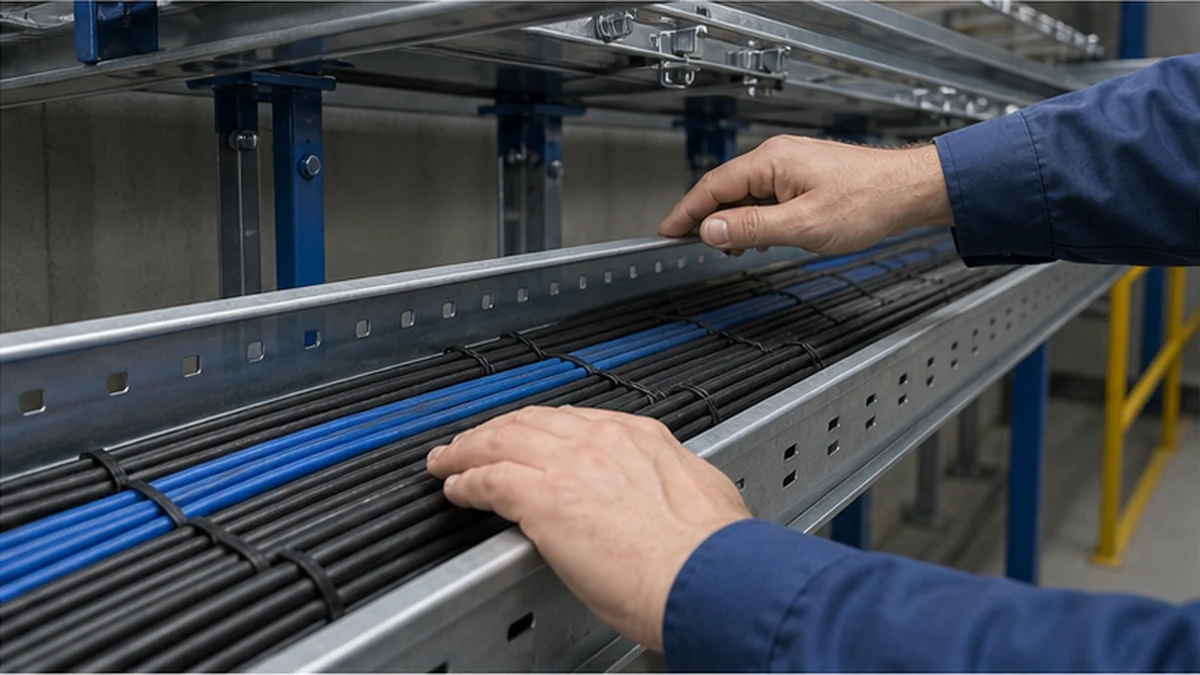

Before general cable pulling begins, verify the installed tray profile and fittings against the approved coordinated drawing. The inspection should cover the following items:
Photograph the representative section and retain the record with the installation package. If a discrepancy is found, resolve it through a formal design query before populating adjacent sections.
A structured approval sequence reduces the risk of a depth selection being fixed on incomplete data and then carried into procurement and installation without review.
Each step should reference the document revision it relied on. That traceability supports site inspection, commissioning checks, and future modifications.
