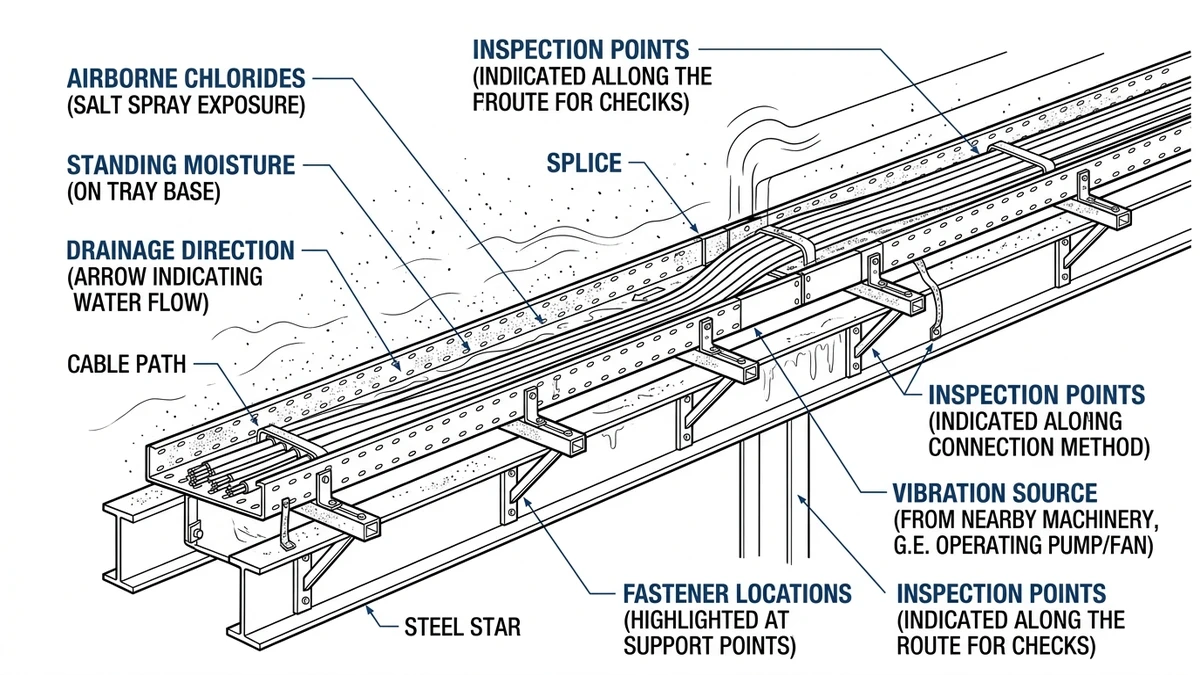

A marine cable tray is a cable management system for ships, offshore platforms, coastal plants, and splash-zone areas where salt spray, humidity up to about 95% RH, vibration, and temperature swings from roughly −20 °C to +60 °C affect both corrosion and structural support. Under IEC 61537, trays are assessed as mechanical systems, but marine selection also has to satisfy class rules and project requirements for material grade, coating, support spacing, and fastening details.
Unlike dry indoor installations, marine trays are selected not only for cable capacity but for whether they remain structurally sound, electrically continuous, inspectable, and maintainable in the actual exposure zone. Trays that perform adequately inland may corrode at joints, fail at cut edges, or loosen under motion on exposed decks or in washdown machinery spaces. For related configurations and system context, see Xinma’s overview of cable tray systems and its main cable management product range.

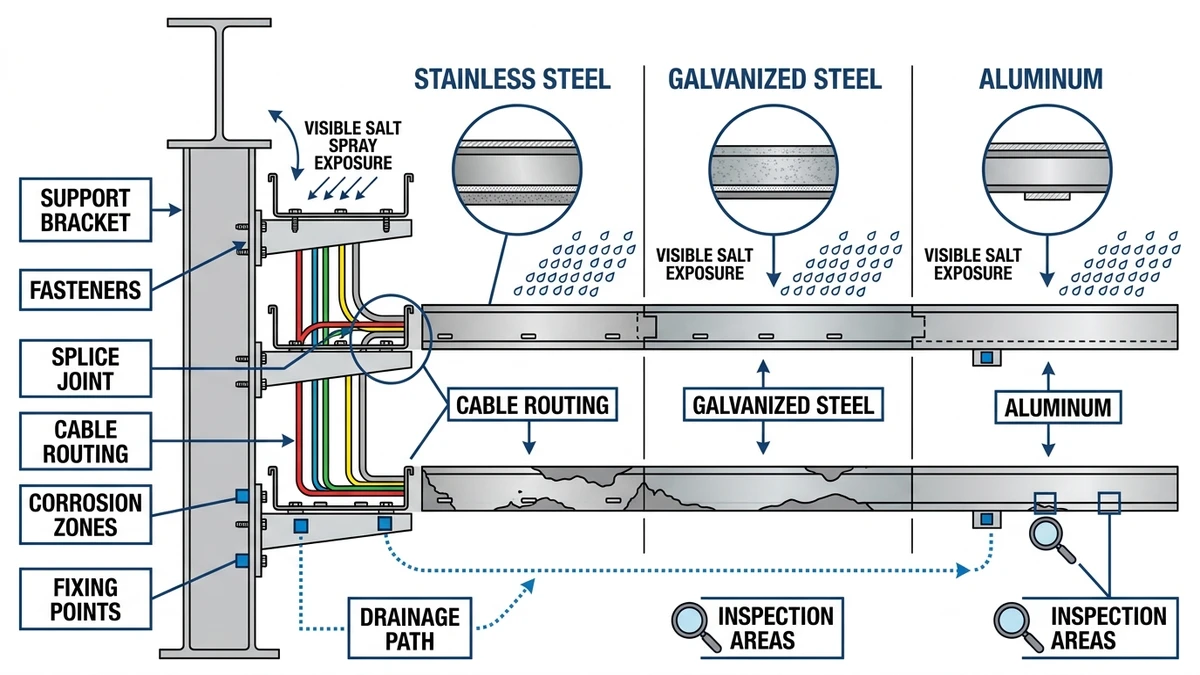

Material choice in marine cable tray design is mainly a corrosion-control decision. In chloride-rich air, early failures usually start at cut edges, bolted joints, fasteners, and wet crevices rather than along straight side rails.
| Material | Typical marine behavior | Main advantages | Main limitations | Use when | Avoid when | Check before specifying |
|---|---|---|---|---|---|---|
| Hot-dip galvanized steel | Zinc provides sacrificial protection, but chlorides consume the coating faster at damaged areas and fixings | Lower initial cost, good stiffness, familiar support hardware | Coating life drops in splash, washdown, or standing-salt conditions | Sheltered interior spaces with inspection access | Open decks, frequent washdown zones, persistent salt deposits | Coating thickness, repair method at cut edges, fastener compatibility |
| Stainless steel 304 | Better than galvanized steel in mild humidity, but vulnerable to pitting and crevice corrosion in chlorides | Good finish, moderate maintenance in mild atmospheres | Usually not preferred for direct salt spray or stagnant deposits | Interior spaces with controlled condensation | Splash zones, deckhead runs near seawater exposure | Chloride level, joint detailing, cleaning interval |
| Stainless steel 316/316L | Molybdenum improves pitting resistance in chlorides; often the default stainless option for marine tray | Strong life-cycle performance, lower maintenance at joints and fittings | Higher material cost; still sensitive to severe crevices and trapped deposits | Weather deck runs, offshore modules, exposed routing | Tight crevices with poor drainage if detailing is weak | Hardware grade, crevice geometry, drainage, accessibility |
| Aluminum alloy | Stable oxide film performs well in many marine atmospheres; low self-weight reduces support load | Lightweight, easier handling, useful for long runs and retrofits | Galvanic risk with carbon steel or copper-rich hardware; some stagnant wet deposits can attack it | Weight-sensitive runs, limited support capacity, retrofit work | Mixed-metal interfaces without isolation | Support material, isolation pads, earthing approach |
| FRP/GRP | Non-metallic, so no rusting and no galvanic corrosion | Excellent corrosion resistance, electrically nonconductive | Lower stiffness in some systems, UV and fire performance must be checked | Highly corrosive topsides, chemical washdown areas | Heavy-load long spans without verified support data | Fire performance, UV resistance, support spacing, impact duty |
The main trade-off is durability, stiffness, and tolerance to detailing errors. In direct salt spray, frequent washdown, or where wet salt remains for more than about 24 hours, galvanized steel often becomes maintenance-driven, while 316/316L stainless or FRP/GRP is usually safer.
Material also affects support design. On runs with support centers around 3.0 m to 6.0 m, aluminum’s lower weight can reduce bracket and deck loading, but galvanic isolation still has to be designed as part of the full tray and hardware package.
[Expert Insight]
– A corrosion-resistant side rail does not compensate for the wrong fastener set. Marine failures often start where small hardware creates a local cell.
– When maintenance access is limited, life-cycle cost usually favors the material that reduces intervention frequency, not the material with the lowest purchase price.
– If a route changes from sheltered interior space to exposed deck, treat that as a material transition point rather than carrying one material spec through the whole run.

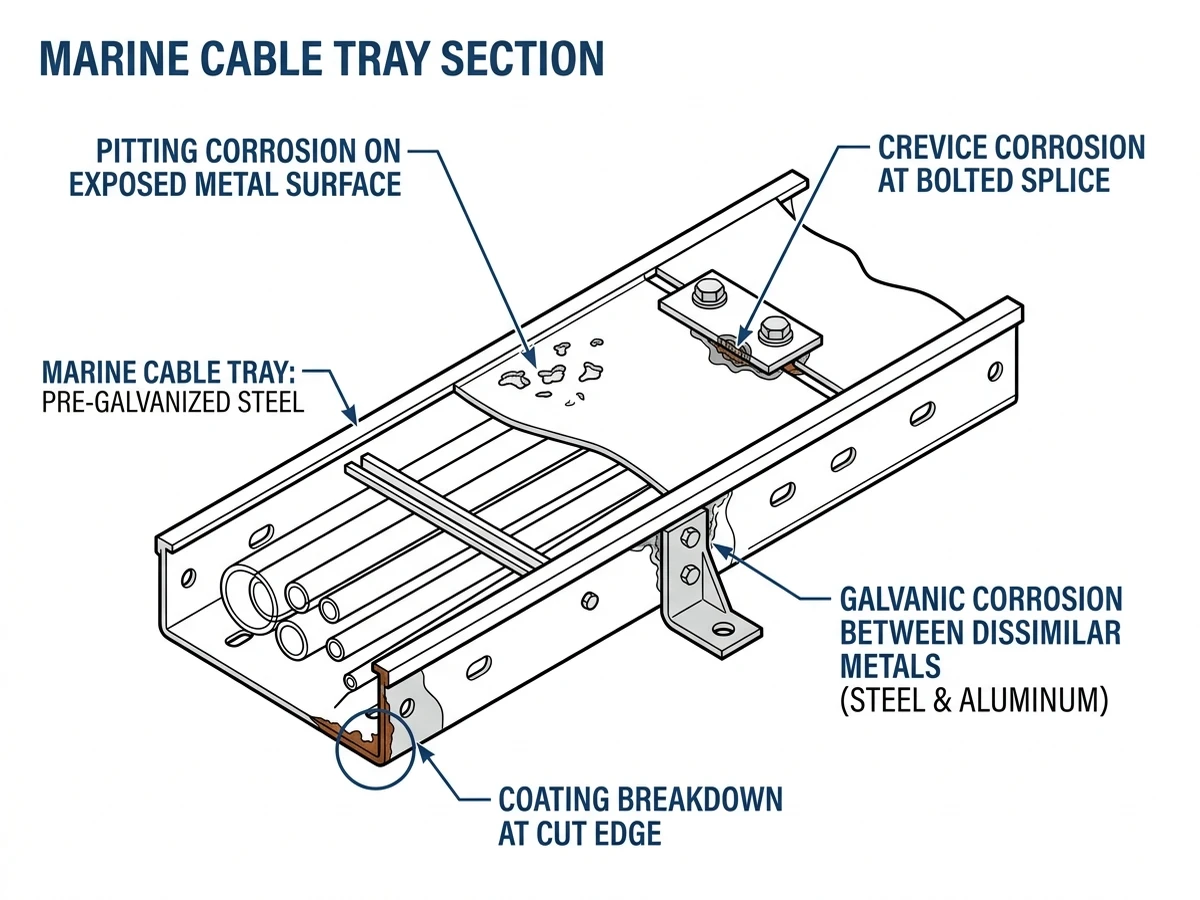

Marine cable tray systems usually degrade by localized corrosion, not uniform metal loss. Chlorides, moisture, oxygen differences, and dissimilar metals attack fasteners, cut edges, welds, and water-trap zones first, and even 10% to 20% section loss at a side rail or splice can materially reduce load capacity.
Stainless steel depends on a passive oxide film, but chlorides can break it locally and start pitting or crevice corrosion. Because salt deposits can remain active above about 75% RH, drainage and simple geometry are often more effective than thicker metal alone.
Galvanic corrosion occurs when dissimilar metals are electrically connected in the presence of an electrolyte. A common case is galvanized tray fixed with stainless hardware on a wet deckhead, where zinc is consumed faster around the contact area.
Geometry often controls the failure point because washers, overlaps, terminations, and flat runs with poor fall create oxygen-starved wet crevices. Early corrosion is often found in the lowest 50 mm to 100 mm of a run, near penetrations, or under retained debris.
In aggressive marine zones, inspection intervals are often reduced to around 6 to 12 months, especially where cut edges, coating damage, or mixed-metal fixings exist. First checks should focus on joints, supports, field modifications, and low points where water or deposits collect.
These combine crevices, fasteners, and load transfer, so they are usually higher-risk than straight tray lengths.
Support connections often stay wet longer than the tray body and are common galvanic contact points.
Field drilling and cutting remove protective finishes and often create the earliest corrosion cells.
Even shallow standing water can keep corrosion active if salts remain trapped.

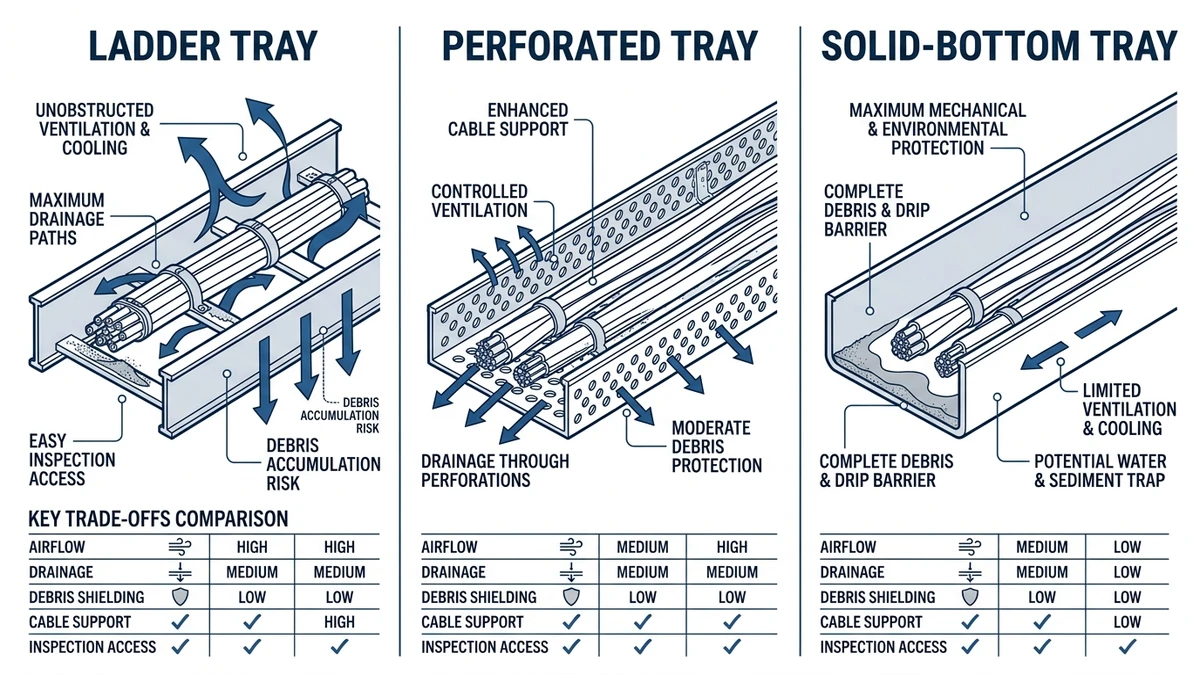

In marine conditions, tray type should be chosen by drainage, salt retention, cable support density, heat dissipation, and physical protection. For most exposed runs, ladder tray is the default because it drains quickly and retains the least salt; perforated tray is a compromise; solid-bottom tray is usually justified only when shielding or debris protection outweighs the corrosion and thermal penalty.
| Parameter | Ladder tray | Perforated tray | Solid-bottom tray |
|---|---|---|---|
| Drainage after spray or washdown | Excellent | Good | Poor unless sloped and drained |
| Ventilation and heat dissipation | Excellent | Moderate to good | Lowest |
| Salt and moisture retention | Lowest | Moderate | Highest |
| Mechanical protection | Lowest | Moderate | Highest |
| Cleaning and visual inspection | Best | Good | Worst |
| Typical support spacing tendency | Often longest, about 1.5 m to 3.0 m depending on load class | About 1.5 m to 2.5 m | Often shortest for similar sheet thickness and load |
| Best marine use | Power feeders, open runs, long exposed routes | Mixed service, control and instrumentation | Short protected sections, contamination shielding |
Ladder tray sheds water, dries quickly, and improves cable cooling. It is usually the best option for exposed routes, frequent washdown, and thermally loaded runs.
Perforated tray gives control and instrumentation cables more continuous bottom support than ladder tray. Its trade-off is higher residue retention, so it suits marine interiors or routes with workable cleaning access.
Solid-bottom tray can protect cables from debris or drips, but it also traps moisture and reduces cooling. On long exposed runs, especially with cable fill above about 40% to 50% in machinery spaces around 45 °C to 55 °C, both thermal derating and corrosion risk increase.
The route is exposed, washdown is frequent, heat dissipation matters, or inspection access is important.
Smaller cables need more continuous support, but the route still requires drainage and moderate ventilation.
The run is long, salt-exposed, thermally stressed, or difficult to inspect and clean.
Confirm tray type against IEC 61537 load class, actual support span, cable fill, ambient temperature, and project fire or shielding requirements. For applications where open-run corrosion resistance and span efficiency are priorities, Xinma’s ladder tray configurations are typically the first comparison point; if the route needs more continuous bottom support, review perforated tray options against the added cleaning trade-off.
[Expert Insight]
– The tray that offers the most physical protection is not usually the tray that performs best against marine corrosion.
– If two tray types meet the load requirement, the one that drains and dries faster often gives the longer maintenance interval.
– For instrumentation-heavy routes, the right compromise is often not a stronger tray but a tray with better support density and a cleaner inspection plan.

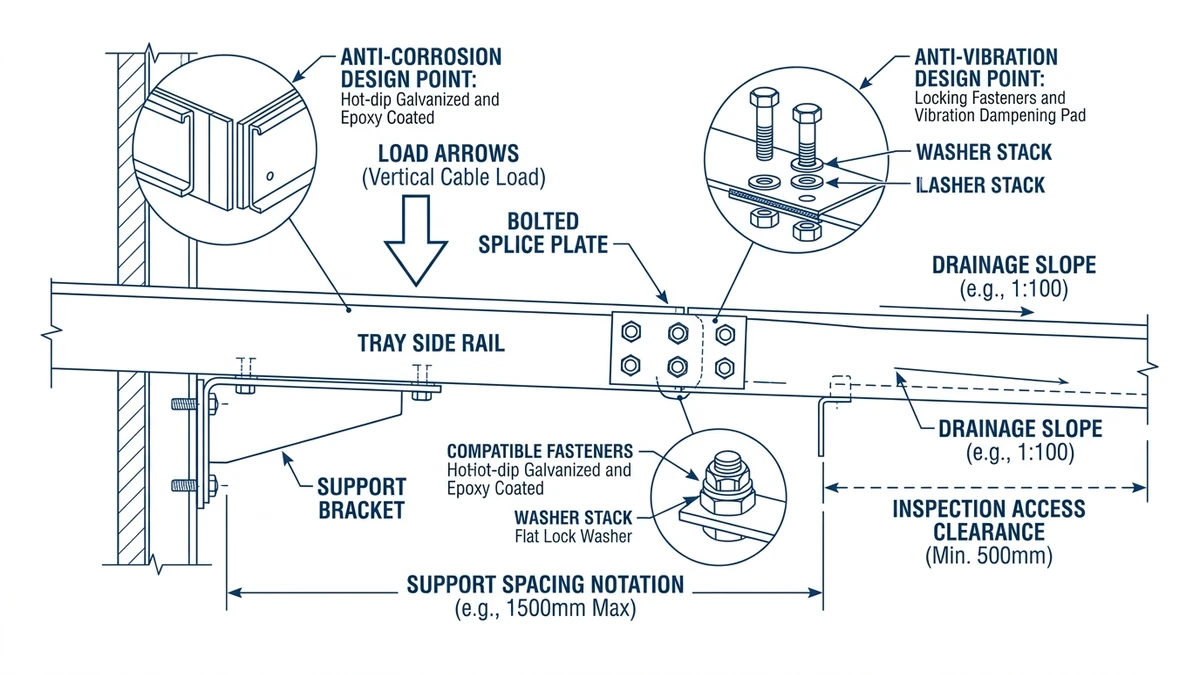

Marine cable tray installations usually succeed or fail at the fixing points. Supports, clamps, anchors, and fasteners must carry dead load, motion, vibration, and thermal movement while maintaining corrosion resistance and clamp force.
Support spacing should come from tested IEC 61537 tray data, not generic inland practice. In marine work, spans of about 1.5 m to 3.0 m are common, depending on tray width, side rail depth, tray type, and installed load in kg/m.
Marine fixings must resist both corrosion and loosening, so stainless hardware of the correct grade and vibration-resistant locking details are typical. Main support fasteners are commonly M8, M10, or M12, selected from bracket reaction and support thickness rather than habit.
Rigidly fixing every support is a common error. Over a 30 m straight run, normal thermal movement can reach several millimeters, and without sliding supports or expansion allowance the tray can bow, overload end fixings, or transfer force into cable cleats.
Before release, verify full installed load in kg/m, set support span from tested data, and check deflection criteria such as L/200 where applicable. Add supports near elbows, tees, reducers, and vertical transitions, often within about 300 mm to 600 mm where system details require it; also avoid mixed-metal contact without isolation and support locations that block inspection. Where fittings and support interfaces are part of the design package, Xinma’s pages on tray fittings and connection pieces and seismic and restraint support options help align straight-run assumptions with actual branch and restraint details.
Most field failures trace back to four issues: wrong material pairing, underestimated installed load, poor movement allowance, and layouts that cannot be inspected.
Specifying “stainless” or “aluminum” without checking the exact exposure zone is a common shortcut. Even 316L can corrode in tight wet crevices, and aluminum in direct contact with carbon steel supports can suffer galvanic attack.
Installed load often exceeds the design basis once covers, retained residue, and future cable additions are included. The first signs are usually excess deflection, loosened supports, or local overstress at fittings rather than immediate collapse.
If thermal expansion and vessel motion are not considered together, trays can bow, clamp preload can fall, and end anchors can be overloaded. This is especially common when offshore details are copied from static onshore layouts.
Trays routed too close to bulkheads, pipework, or other obstructions are difficult to inspect and maintain. In aggressive zones that may need review every 6 to 12 months, poor access allows coating damage, trapped salt, and support corrosion to go unnoticed.
The practical lesson is to treat marine cable tray as an assembled system. Straight lengths, fittings, supports, fasteners, drainage, and inspection access all affect reliability.
Marine cable tray specification works best when material, tray type, support span, fitting detail, and hardware are checked together before release. Many field corrections come from treating those items separately when a change in one variable affects the others.
Moving from galvanized steel to 316L stainless changes hardware compatibility and maintenance expectations. Adding covers increases distributed load and can reduce allowable support span, while switching from ladder to a more enclosed tray changes both cable cooling and corrosion behavior.
In specification-stage reviews for similar marine and coastal runs, the most useful checks are usually whether the tray material matches the actual exposure zone, whether fittings and hardware remain consistent with the corrosion strategy, whether support spacing reflects full installed load, whether bends and penetrations create water traps, and whether the layout can be inspected at its planned interval.
