Base cable tray selection on three constraints: load (kg/m), separation, and access. First, calculate combined power and low-voltage cable mass per meter and match it to an IEC 61537 / NEMA VE 1 load class with ≤3 m support spans. Then enforce physical segregation, EMC needs, and maintenance access along every routed segment.
In a data center cable tray system, matching tray types to power and low-voltage circuits comes down to voltage level, fault energy, segregation needs, and cable density. For most layouts, that means one tray strategy for ≥400 V power and another for ELV/IT circuits below 120 V.
In practical terms: decide which circuits can physically share a tray, which must be separated, and which require barriers or covers. From there, you can choose ladder, wire mesh, or solid/perforated bottoms and then size load classes and spans.

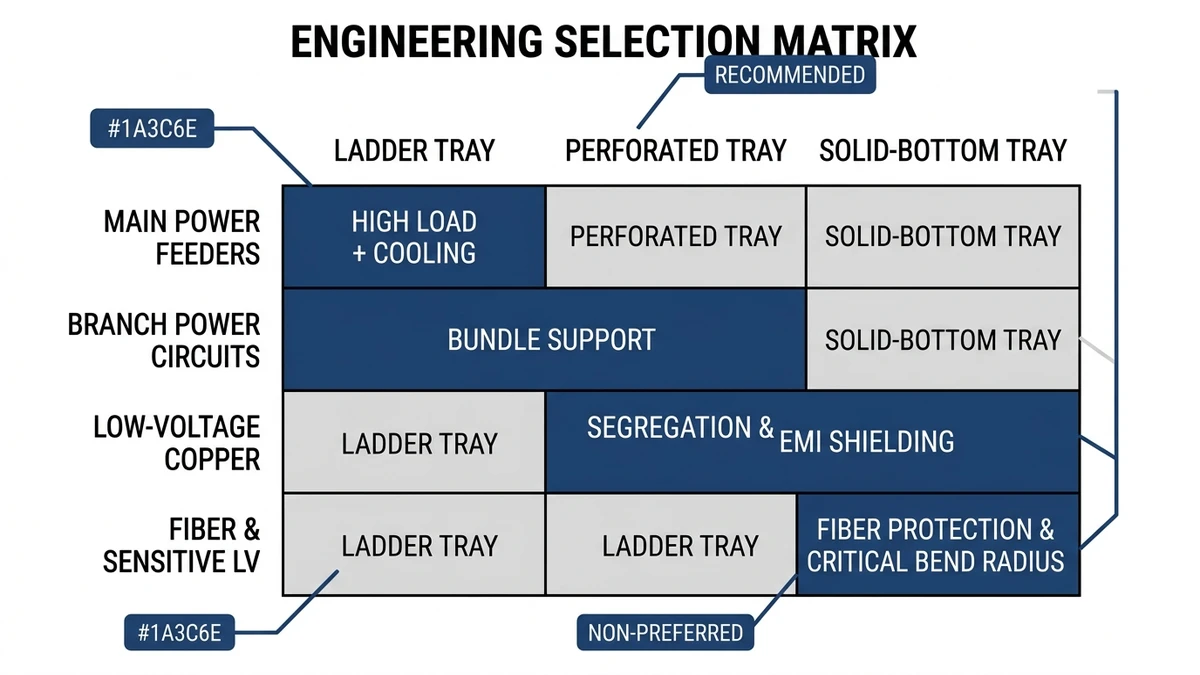

Use this matrix as a starting point; then refine for load class (e.g., 100–200 kg/m), support span (typically 2–3 m), and required segregation.
| Circuit type | Typical voltage / use | Recommended tray type | Advantages | Limitations / checks |
|---|---|---|---|---|
| Main feeder power | 400–690 V, ≥400 A | Heavy-duty ladder tray (steel) | High load capacity, good heat dissipation, easy cleats | Needs earthing, check short-circuit restraint and EMC |
| UPS output / PDU feeds | 230/400 V, 100–400 A | Ladder or deep solid-bottom tray | Supports larger bend radius, organized grouping | Control thermal rise; verify support span at 150 kg/m |
| Branch power to racks | 230 V, 16–63 A | Wire mesh tray or light ladder | Flexible routing above racks, easy adds/moves | Limit fill ratio (~40–50 %); protect from debris |
| DC bus / battery strings | 48–380 V DC | Ladder with side rails, sometimes covered | Clear cleating, fault containment, defined routing | Confirm creepage/clearance; verify polarity segregation |
| Network backbone (fibre / Cat.6A trunk) | Low-voltage, latency sensitive | Separate wire mesh or solid-bottom tray | Reduced EMI coupling, controlled bend radius | Maintain ≥300 mm separation from power when parallel |
| Row-level copper / patch bundles | Low-voltage, high density | Shallow wire mesh tray | Easy reconfiguration, drop-outs at racks | Watch cable stack height; avoid over-tight ties |
| Control & monitoring (BMS, fire, PLC) | 24 V DC, 230 V AC mixed | Solid-bottom or duct-type tray | Physical and functional segregation possible | Maintain separation between SELV and 230 V groups |
| Security & access control | 12–48 V, often shielded | Wire mesh or solid-bottom, covered in public | Tamper resistance, concealment | Account for added cover mass in support design |
Define voltage and fault duty
For trays carrying circuits with prospective fault currents above roughly 10 kA, favor rigid ladder tray with certified accessories so cleats and supports can withstand electromechanical forces. NEMA VE 1 provides tray performance and test methods for mechanical loading and support design .
Plan segregation and separation
Run power and data in separate trays or with physical barriers. As a rule of thumb, keep at least 150–300 mm horizontal separation when they share the same support tier; increase for very noisy loads such as UPS inputs or VFDs. When space is tight, specify metallic dividers and verify bonding to the earthing system.
Match tray bottom to cable type
Solid/perforated: use where small-diameter or MICC cables need continuous support or where drips/dust must be controlled, such as near humidification plant or return-air plenums.
Check fill ratio and derating
Maintain fill typically ≤40 % of tray cross-sectional area for power to limit ampacity derating, and ≤60 % for low-voltage bundles to keep thermal and mechanical stress manageable. Above these numbers, you may have to derate cable ampacity by 10–25 % depending on grouping and ambient temperature.
Design takeaway: sort each route by circuit type and voltage, assign a tray family from the matrix, then verify load class, fill, and separation before locking in widths and support spans.
[Expert Insight]
– In our dense white-space deployments, the most common retrofit issue has been underestimated low-voltage tray width rather than power capacity; allowing 30–40 % spare area on data trays has consistently reduced unplanned overhead work.
– Maintenance teams report that mixed-voltage trays—even with dividers—slow fault tracing; where possible, keeping ELV and 230 V circuits on separate runs shortens diagnostic time during outages.

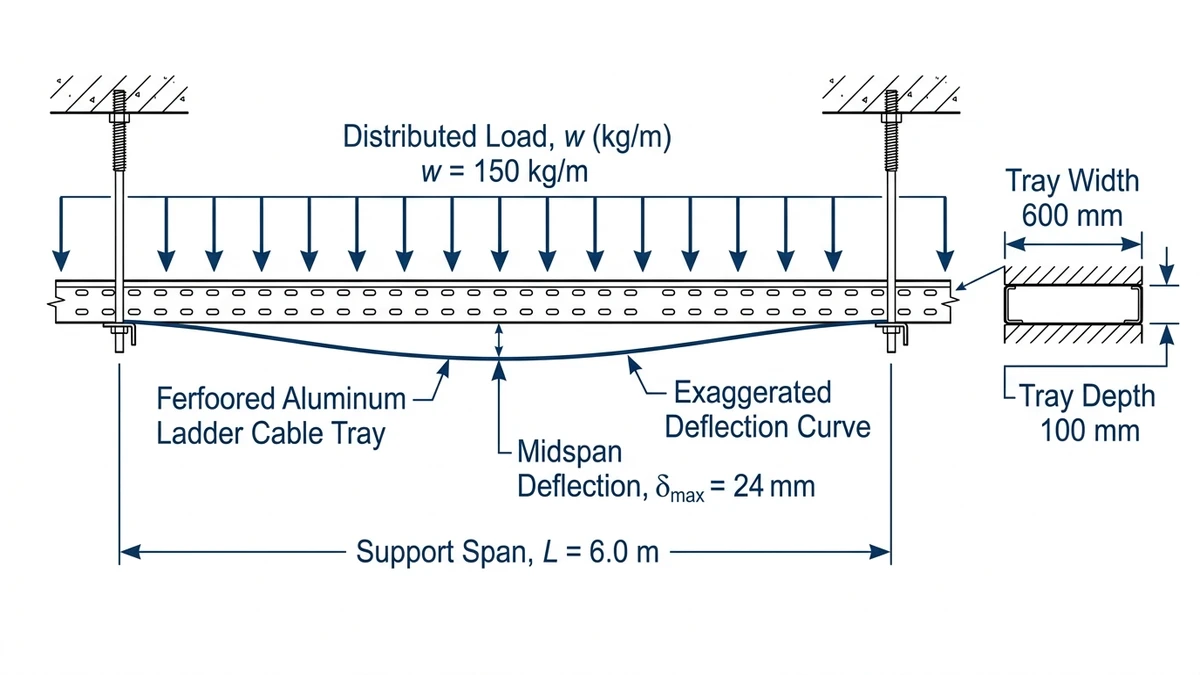

For a dense data center, the cable tray system behaves like an engineered beam, not just a cable management accessory. Selection starts with three linked decisions: tray width/depth, load rating, and support spacing. These must be checked together against cable mass, future growth, and deflection limits (often L/200 per IEC 61537 for many tray classes).
Use cable schedules to calculate total weight and required area:
Selection consequence: if a 300 mm ladder tray reaches 50 % fill on day one, move to 400 mm or add a second tray; “designing in” 80–100 % fill leaves no room for future circuits and forces derating.
Check manufacturer load tables by width and span:
Selection consequence: choose at least one load class above calculated service load to keep deflection and vibration under control, especially for wide (≥600 mm) trays. For example, if your calculated continuous load is 90 kg/m at 3.0 m span, select a tray rated around 120 kg/m at that span, not one that is “just” 90 kg/m.
Support span is a design parameter, not an installer decision:
Buyer checklist:
[Expert Insight]
– Where we have standardized on a 2.5 m span instead of 3.0 m, structural coordination became easier: identical brackets and predictable midspan clearance simplified clash checks with ductwork and sprinkler mains.
– Testing on long battery runs showed that even modest midspan deflection can loosen cleats over time; specifying a stiffer tray profile and shorter span reduced re-torque visits in the first year of operation.

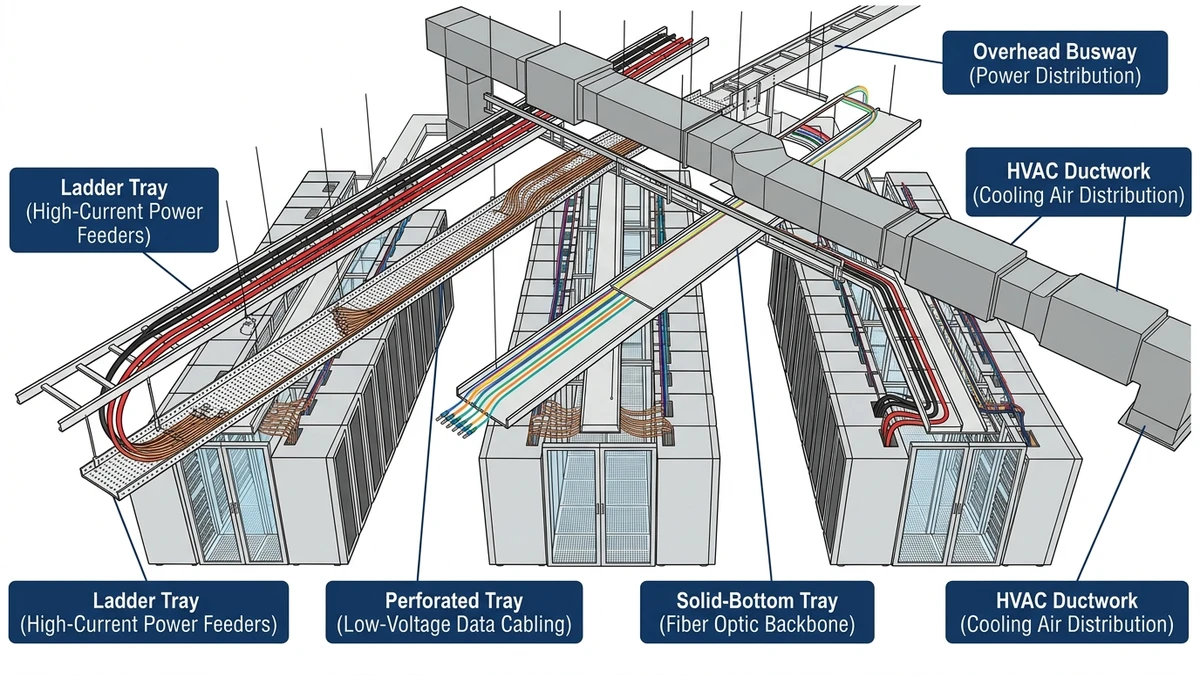

Selecting a cable tray system for a data center is only half the job; you also have to route it through real data halls with column grids, hot‑aisle/cold‑aisle arrangements, and expansion plans. The governing parameters are aisle alignment, vertical stacking, and separation of power and low‑voltage trays.
Most modern data halls use orthogonal runs following the rack grid:
A common pattern is ladder tray at 400–600 mm width above hot aisles for power, with wire mesh tray at 200–300 mm above cold aisles for low-voltage. Keeping at least 300 mm vertical separation (finished floor to tray centerline difference) and 150–200 mm horizontal offset between power and data trays reduces crosstalk and simplifies future upgrades.
Design consequence: once you pick ladder vs wire tray and width, you effectively lock in rack positions and PDU tap-offs. Re‑routing a 20 m power highway after the fact is far more disruptive than re‑filling it, so selection should assume 30–40 % spare fill.

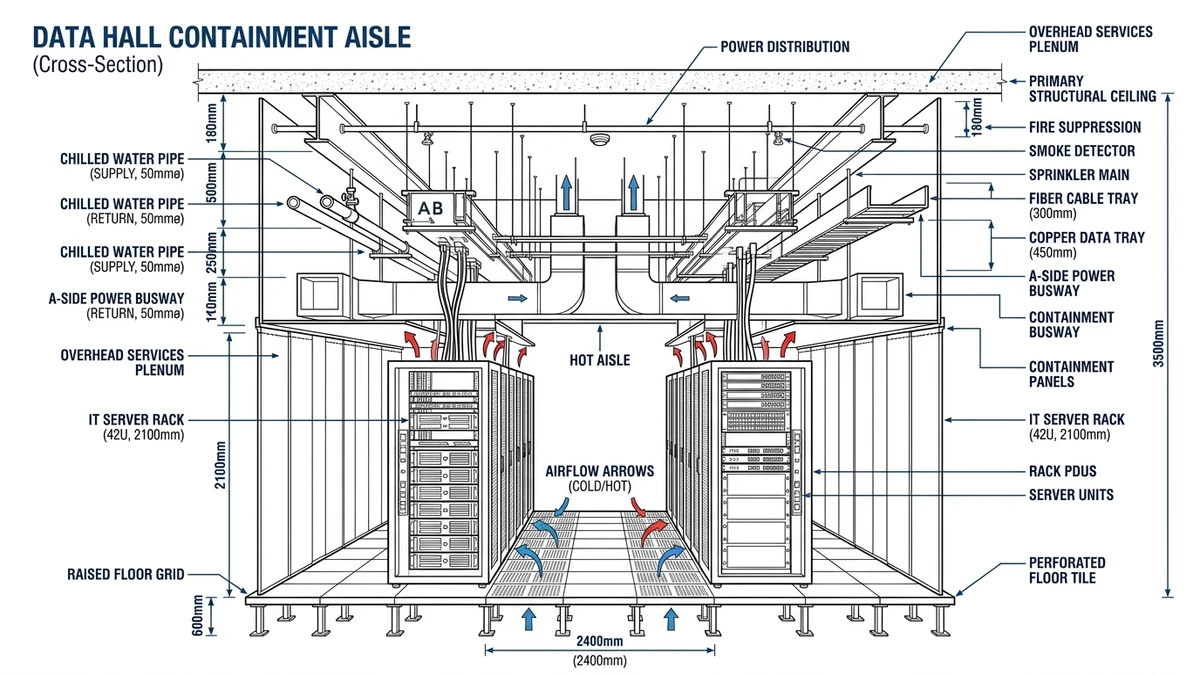

Consider a hall with a 6 m column grid and 2.4 m hot/cold aisles:
Selection consequence: choosing a heavier-duty ladder tray here can allow 3.0–3.5 m support spans instead of 2.0–2.5 m, which may eliminate an entire row of supports across a 30 m hall, reducing coordination with structural and fire systems.
Cable tray systems in data centers sit in the middle of several design domains: structural, electrical protection, EMC, and fire strategy. The tray choice has knock-on effects in all of them, so selection should reference standards and adjacent systems, not just catalog ratings.
Tray mass plus cable load feeds into building support design:
In our reviews of retrofit projects, under-designed trapeze hangers have been a recurring issue; once trays are fully populated, deflection and sway become evident during maintenance or minor seismic events, forcing costly reinforcement.
Tray material, bonding, and routing interact with protective devices and EMC performance:
IEC 61537 covers mechanical and electrical continuity tests for cable tray systems; referencing its test routines in specifications provides a common basis for tray selection and inspection (see IEC 61537:2016, clauses on electrical continuity and load testing: IEC 61537 publication page).
Tray selection and routing influence fire performance and egress:
Xinma ties data center cable tray selection directly to the design variables that drive reliability: load class, span, fill ratio, and thermal margin. For dense 600 mm power ladders spanning 3.0 m under 75–120 kg/m distributed load, those variables decide whether the system remains within IEC 61537 deflection and ampacity assumptions or creeps into risk as circuits are added.
From the choices outlined earlier—ladder vs wire mesh, 300 mm vs 900 mm width, 1.5 m vs 3.0 m support spans—Xinma’s role is to check the combination, not just the catalog part. That includes:
In our coordination reviews with designers, we often find that simply tightening the standard span from 3.0 m to 2.5 m and locking in a higher load class tray eliminates later requests to “double up” runs or restrict additional circuits.
If you are at the stage of locking in tray families, Xinma can review your tray layouts, loading assumptions, and support drawings and provide specification notes or redlines so the installed system behaves like the one you calculated. For projects that need integrated power distribution, that coordination can extend to busway runs feeding PDUs and RPPs so tray capacity, bus plug positions, and cable exit points align from the start.
To explore tray families and load classes suitable for dense data centers, you can review Xinma’s main cable tray range, including heavy-duty options for primary distribution: cable tray systems overview. Where routes favor open ladder designs for heat dissipation and fault restraint, see the dedicated ladder cable tray selection. For coordination with overhead power distribution, Xinma’s busway solutions for data halls can be evaluated alongside tray layouts to balance tray fill, drop lengths, and tap-off locations.
For more detailed design background—especially for new specifiers—Xinma’s technical articles on how cable tray systems are used in electrical infrastructure and on cable tray support design provide additional worked examples of spans, loads, and coordination with building services.
Calculate the total cable cross-sectional area for each route, apply a typical fill limit of about 40 % for power and 60 % for data, then choose the next standard tray width that keeps both within those limits with at least 20–30 % spare capacity for growth.
Use ladder tray when you have heavy power feeders, higher fault levels, or the need for strong cleating; reserve wire mesh for lighter low-voltage bundles where frequent reconfiguration and many drop-outs are expected.
A practical starting point is 150–300 mm horizontal separation with some vertical offset when trays share supports, increasing distance or adding metallic barriers if you have high-harmonic loads or very sensitive data circuits.
Longer spans reduce hanger quantity but increase deflection and lower allowable load, while shorter spans add hardware cost yet improve stiffness, headroom control, and long-term stability of cleats and ties.
Confirm clear headroom under full cable load, verify that supports and fixings meet the project fire strategy, and consider independent bracing so deformation of adjacent services does not compromise the escape path.
