Seismic Bracing System

You Are Here:Home-Products- Seismic Bracing System

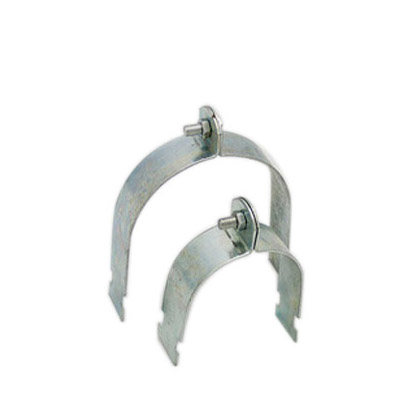

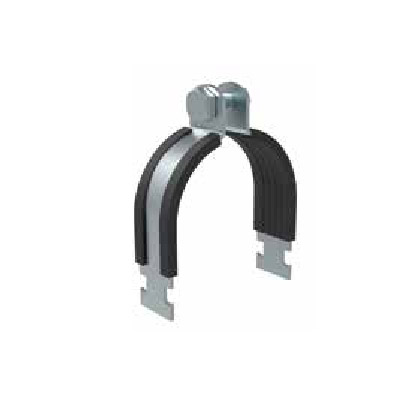

P Type Pipe Clamp

■ Simple Structure
■ Stable Performance
■ Economy
■ Wide Application
■ Size Adjustable
■ Large Compressive Strength
■ Various Combinations



Model Pipe Outer Diameter
D ( mm )
Thickness
( mm )
Bolt Specifications
XM-KZD-PPC-15 15.00 1.50 M6
XM-KZD-PPC-18 17.00 1.50 M6
XM-KZD-PPC-22 21.00 1.50 M6
XM-KZD-PPC-25 25.00 1.50 M6
XM-KZD-PPC-28 27.00 1.50 M6
XM-KZD-PPC-30 30.00 1.50 M6
XM-KZD-PPC-35 34.00 1.50 M6
XM-KZD-PPC-38 38.00 1.50 M6
XM-KZD-PPC-42 42.00 1.50 M6
XM-KZD-PPC-44 45.00 1.50 M6
XM-KZD-PPC-48 48.00 1.50 M6
XM-KZD-PPC-54 54.00 1.50 M6
XM-KZD-PPC-57 57.00 1.50 M6


anti-seismic bracket-details1

Practical application

■ Suitable for installation of medium and light pipes.
■ Used to fix the pipe on the cross brace channel steel.
■ The multi-tube combined bracket is suitable for flat installation at the bottom of the pipeline.



anti-seismic bracket-details3

Installation

■ Snap into the C-shaped steel opening at any position, rotate 90 degrees to connect with the C-shaped steel, and then lock it with a bolt to complete the installation.



anti-seismic bracket-details2

Structural appearance

■ Two-piece split design, fixed installation of pipe at any position.
■ Design close to the shape of the pipeline, leaving more space for the laying of the pipeline.



anti-seismic bracket-details4

Technology

■ Material: Q235B.
■ Zinc plating: electro-galvanized, thickened by 8μm and closed. Produced according to GB T 9799 standard.
■ Other anti-corrosion treatment: hot dip galvanized, epoxy spray.
