Seismic Bracing System

You Are Here:Home-Products- Seismic Bracing System

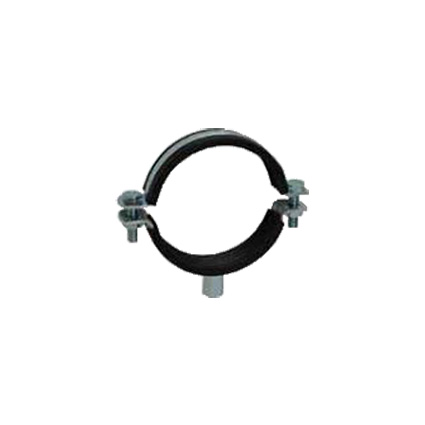

Heavy Duty

■ Simple Structure
■ Stable Performance
■ Economy
■ Wide Application
■ Size Adjustable
■ Large Compressive Strength
■ Various Combinations



Model

Hoop Range

Thickness

Width

Screw Joint

Bolt Specifications

Package

(pcs)

XM-KZD-MI48-51

48-51

2.0

25.00

M12+M10

M6*20

10

XM-KZD-MI68-76

68-76

2.0

25.00

M12+M10

M6*20

10

XM-KZD-MI88-95

88-95

2.0

25.00

M12+M10

M6*20

25

XM-KZD-MI100-108

100-108

2.0

25.00

M12+M10

M10*40

40

XM-KZD-MI110-114

110-114

2.0

30

M12+M10

M10*40

25

XM-KZD-MI121-127

121-127

2.0

30

M12+M10

M10*40

5

XM-KZD-MI139-142

139-142

2.0

30

M12+M10

M12*40

5

XM-KZD-MI152-160

152-160

2.0

30

M12+M10

M12*40

5

XM-KZD-MI165-170

165-170

2.0

30

M12+M10

M12*40

5

XM-KZD-MI207-219

207-219

2.0

40

M12+M10

M12*60

5



anti-seismic bracket-details1

Practical application

■ Suitable for fire pipes, HVAC pipes, spray pipes, hot water pipes, water supply and drainage pipes and other process pipes below DN200
■ Easy installation, can be connected with the channel steel system to form a complete gas pipeline support system.



anti-seismic bracket-details3

Installation

■ Open the bolt at one end and place the pipe into the pipe bundle.
■ Connect the tube bundle and tube bundle buckle pad through the screw to fix it to the channel steel.



anti-seismic bracket-details2

Structural appearance

■ Two locking bolts to facilitate fine-tuning of pipe size specifications.
■ EPDM rubber liner with vibration damping and sound insulation fruit.
■ High-strength tube bundle design helps improve the rigidity of the material.



anti-seismic bracket-details4

Technology

■ Material: Inert rubber inner liner EPDM, STW22 steel is produced according to DIN EN 10111 standard.
■ Working temperature: -40oC-110oC.
■ Noise reduction index: 18dB (A).
■ Recommended design load: max F = 3kN.
