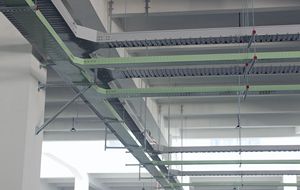

Application of Cable Tray
In the process of using the cable tray, we often use electrical accessories such as cable terminal junction box, cable intermediate junction box, connecting pipe and terminal, steel plate slot, cable tray, etc. These equipments also make the cable tray suitable for indoor and outdoor overhead laying of power cables and control cables in general industrial and mining enterprises, and also for indoor and outdoor erection of telecommunication, radio and television departments. Cable tray is widely used as electronic transmission equipment in modern society, so everyone knows what contribution it has made to the industry. Cable trays have made a relatively macro contribution to the construction industry. Even office buildings and commercial buildings are now using galvanized cable trays to protect civil structures. The types of cable trays used in different terrain areas are different. Generally, slot type composite cable tray with cover will be used in cable lines that need to shield interference. In acid rain and strong corrosive environment, corrosion-resistant flame-retardant cable tray with composite epoxy resin will be mostly used to resist the erosion of harsh environment. On the other hand, tray-type cable trays are usually selected on our roadside. 1. Industrial plant area In order to deal with the construction of modern chemical plants, cable tray is also used in the construction of industrial plants, so as to manage cables centrally. In most areas of our country, the factory electrical equipment adopts the trough cable tray,…
Learn More -
Calculation of Cable Tray Size
Calculate Size of Cable Tray for Following Cable Schedule. Cable Tray should be perforated and 20% spare Capacity. Distance between each Cable is 10mm. Cable are laying in Single Layer in Cable Tray. (1) 2 No’s of 3.5Cx300 Sq.mm XLPE Cable having 59.7mm Outer Diameter and 5.9 Kg/Meter weight (2) 2 No’s of 3.5Cx400 Sq.mm XLPE Cable having 68.6mm Outer Diameter and 6.1 Kg/Meter weight (3) 3 No’s of 3.5Cx25 Sq.mm XLPE Cable having 25mm Outer Diameter and 0.5 Kg/Meter weight Calculation: Total Outer Diameter of all Cable Passing in to Cable Tray: Diameter of 300Sq.mm Cable =No of Cable X Outer Diameter of Each Cable Diameter of 300Sq.mm Cable =2X59.7 = 119.4 mm Diameter of 400Sq.mm Cable =No of Cable X Outer Diameter of Each Cable Diameter of 400Sq.mm Cable =2X68.6= 137.2 mm Diameter of 25Sq.mm Cable =No of Cable X Outer Diameter of Each Cable Diameter of 25Sq.mm Cable =3X28= 84 mm Total Diameter of All Cables laying in Tray = (119.4+137.2+54)mm Total Diameter of All Cables laying in Tray = 340.6mm Total Weight of Cables Passing in to Cable Tray: Weight of 300Sq.mm Cable =No of Cable X Weight of Each Cable Weight of 300Sq.mm Cable =2X5.9= 11.8 Kg/Meter Weight of 400Sq.mm Cable = No of Cable X Weight of Each Cable Weight of 400Sq.mm Cable =2X6.1= 12.2 Kg/Meter Weight of 25Sq.mm Cable = No of Cable X Weight of Each Cable Weight of 25Sq.mm Cable =3X0.5=…
