Perforated Flat Cable Tray
■ Simple structure ■ Stable performance ■ Economical ■ Wide application
Products
1. Dimension
|
Item |
Width |
Heigh |
Thickness |
Length |
Remark |
|
(mm) |
(mm) |
(mm) |
(mm) |
||
|
XQJ Series Cable Tray |
50 |
50 |
1 |
2000 |
Customized is available |
|
75 |
50 |
1 |
|||
|
100 |
50/100 |
1 |
|||
|
150 |
50/100/150 |
1 |
|||
|
200 |
50/100/150/200 |
1.2 |
|||
|
300 |
50/100/150/200 |
1.2 |
|||
|
400 |
50/100/150/200 |
1.5 |
|||
|
500 |
50/100/150/200 |
2 |
|||
|
600 |
50/100/150/200 |
2.5 |
2. Model Explanation
3. Material & Finish (Sheet 1)
|
Code |
Description |
Feature |
Photo |
|
G |
Pre-Galvanized Steel |
Usually for indoor, economic, high strength, heavy weight, thickness of zinc about 6um, corrosion resistance guarantee 10 years (Middle Corrosion Condition), wide application. |
|
|
S |
Stainless Steel |
For indoor & outdoor, corrosion resistance guarantee 30 years (Middle Corrosion Condition), recommended new generation materials, include SS201, SS430, SS304, SS316. |
|
|
A |
Aluminum Alloy |
For indoor & outdoor, excellent corrosion resistance, light weight, environment protection. |
|
|
HDG |
Hot-Dipped-Galvanized Steel |
Usually for outdoor, excellent corrosion resistance, but production process pollute environment seriously, it’s replaced by Stainless Steel & Powder Coating step by step. |
|
|
P |
Powder Coating |
Coating by Epoxy Powder for Pre-Galvanized Steel, Stainless Steel, Aluminum Alloy to provide maximum protection, reinforced corrosion resistance, high hardness, smooth surface, fire-proof, moisture-proof, dust-proof, color can be customized to as line mark, more and more widely applied. |
|
4. Structure Type (Sheet 2)
|
Code |
Description |
Feature |
Photo |
|
C |

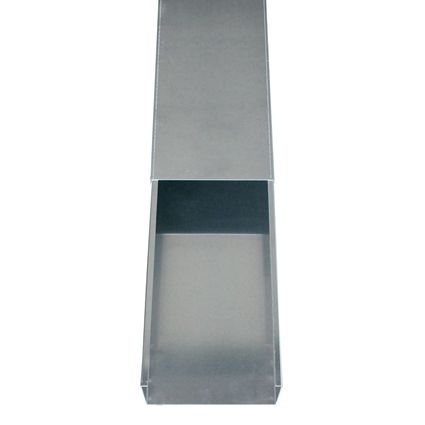

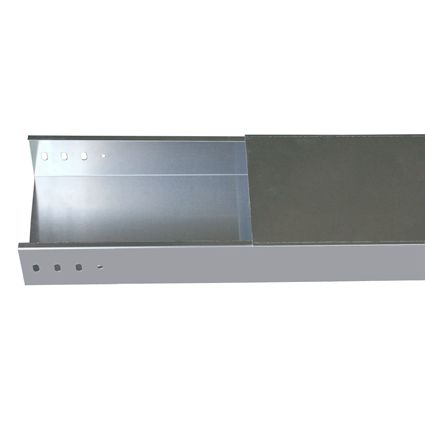

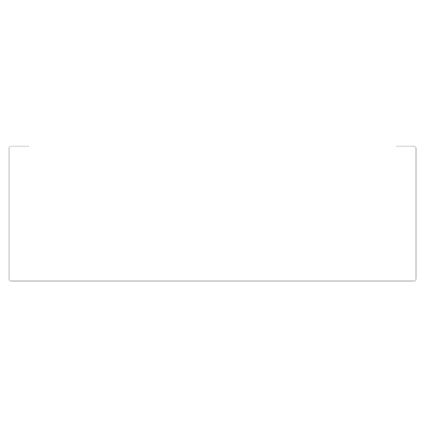

Solid Bottom |
■ Suit for indoor. ■ Fire-proof, moisture-proof, dust-proof, provides the maximum protection for cable. ■ Mainly choose for minimal heat generating cable or delicate cable. |
 |
|
P |
Perforated Bottom |
■ Suit for indoor & outdoor. ■ Ventilated, moisture will leak through bottom hole. ■ Small diameter cable can exit through bottom hole. |
 |
|
T |
Ladder Bottom |
■ Suit for indoor & outdoor. ■ Economical, light weight, be applied widely. ■ Ventilated, heat cable produce dissipate effectively. |
 |
5. Shape Type (Sheet 3)
|
Code |
Description |
Photo |
|
01A |
Straight Section |
|
|
02A |
Horizontal Bend |
|
|
02B |
Vertical Upward Bend |
|
|
02C |
Vertical Downward Bend |
|
|
02D |
Vertical Left-Downward Bend |
|
|
02E |
Vertical Right-Downward Bend |
|
|
02F |
Vertical Left-Upward Bend |
|
|
02G |
Vertical Right-Upward Bend |
|
|
03A |
Horizontal Tee |
|
|
03B |
Vertical Upward Tee |
|
|
03C |
Vertical Downward Tee |
|
|
03D |
Vertical Side Upward Tee |
|
|
03E |
Vertical Side Downward Tee |
|
|
03F |
Vertical Corner Upward Tee |
|
|
03G |
Vertical Corner Left-Downward Tee |
|
|
03H |
Vertical Corner Right-Downward Tee |
|
|
03I |
Vertical Right Tee |
|
|
03J |
Vertical Left Tee |
|
|
03K |
Vertical Right-Downward Tee |
|
|
03L |
Vertical Left-Downward Tee |
|
|
04A |
Horizontal Cross |
|
|
04B |
Vertical Cross |
|
|
04C |
Vertical Upward Cross |
|
|
04D |
Vertical Downward Cross1 |
|
|
04E |
Vertical Downward Cross2 |
|
|
05A |
Left Reducer |
|
|
05B |
Right Reducer |
|
|
05C |
Middle Reducer |
|
|
06A |
Riser |
|
