■ New generation cable tray
■ Excellent loading capacity
■ Light weight
■ Energy-saving
■ Long working life
■ Competitive price

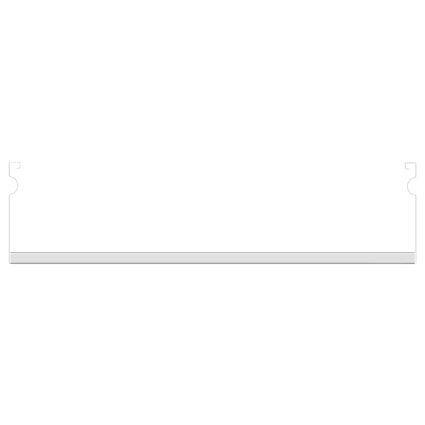

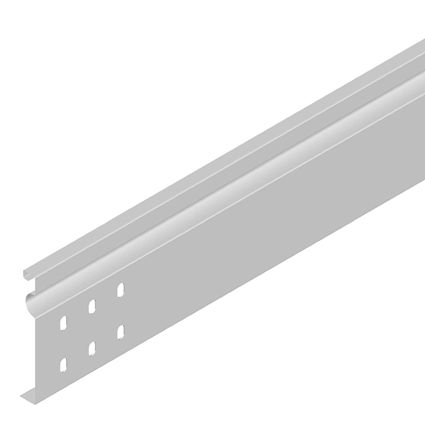

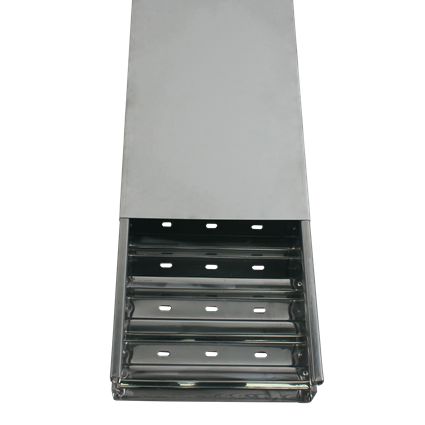

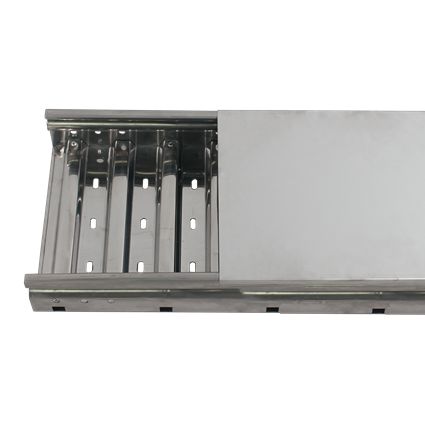

Optimize design for bottom & side by Finite Element Method (FEM), increase inertia moment of bottom to enhance loading capacity, assemble by mechanical arm & laser welding assure fastness & accuracy, using heat conduction and air heat exchange, to maximize the heat generated by the cable conductor in cable tray to be fully dissipated, thereby reducing resistance value, loss of power lines and improving utilization rate of electric energy, achieve the effect of energy saving.
|
Item |
Width |
Heigh |
Thickness |
Length |
Remark |
|
|
(mm) |
(mm) |
Bottom (mm) |
Side (mm) |
(mm) |
||
|
XMBG Series Cable Tray |
300 |
50/100/150/200 |
0.5 |
1 |
2000 |
Customized is available |
|
400 |
50/100/150/200 |
0.5 |
1 |
|||
|
500 |
50/100/150/200 |
0.6 |
1.2 |
|||
|
600 |
50/100/150/200 |
0.6 |
1.2 |
|||
|
800 |
50/100/150/200 |
0.6 |
1.5 |
|||
|
1000 |
50/100/150/200 |
0.7 |
1.5 |
|||
|
1200 |
50/100/150/200 |
0.7 |
1.5 |
|||
|
Code |
Description |
Feature |
Photo |
|
G |
Pre-Galvanized Steel |
Usually for indoor, economic, high strength, heavy weight, thickness of zinc about 6um, corrosion resistance guarantee 10 years (Middle Corrosion Condition), wide application. |
|
|
S |
Stainless Steel |
For indoor & outdoor, corrosion resistance guarantee 30 years (Middle Corrosion Condition), recommended new generation materials, include SS201, SS430, SS304, SS316. |
|
|
A |
Aluminum Alloy |
For indoor & outdoor, excellent corrosion resistance, light weight, environment protection. |
|
|
HDG |
Hot-Dipped-Galvanized Steel |
Usually for outdoor, excellent corrosion resistance, but production process pollute environment seriously, it’s replaced by Stainless Steel & Powder Coating step by step. |
|
|
P |
Powder Coating |
Coating by Epoxy Powder for Pre-Galvanized Steel, Stainless Steel, Aluminum Alloy to provide maximum protection, reinforced corrosion resistance, high hardness, smooth surface, fire-proof, moisture-proof, dust-proof, color can be customized to as line mark, more and more widely applied. |
|
|
Code |
Description |
Feature |
Photo |
|
C |
Solid Bottom |
■ Suit for indoor. ■ Fire-proof, moisture-proof, dust-proof, provides the maximum protection for cable. ■ Mainly choose for minimal heat generating cable or delicate cable. |
 |
|
P |
Perforated Bottom |
■ Suit for indoor & outdoor. ■ Ventilated, moisture will leak through bottom hole. ■ Small diameter cable can exit through bottom hole. |
 |
|
T |
Ladder Bottom |
■ Suit for indoor & outdoor. ■ Economical, light weight, be applied widely. ■ Ventilated, heat cable produce dissipate effectively. |
 |
|
Code |
Description |
Photo |
|
01A |

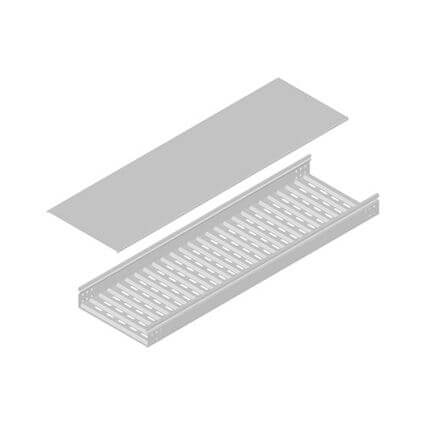

Straight Section |
|
|
02A |
Horizontal Bend |
|
|
02B |
Vertical Upward Bend |
|
|
02C |
Vertical Downward Bend |
|
|
02D |
Vertical Left-Downward Bend |
|
|
02E |
Vertical Right-Downward Bend |
|
|
02F |
Vertical Left-Upward Bend |
|
|
02G |
Vertical Right-Upward Bend |
|
|
03A |
Horizontal Tee |
|
|
03B |
Vertical Upward Tee |
|
|
03C |
Vertical Downward Tee |
|
|
03D |
Vertical Side Upward Tee |
|
|
03E |
Vertical Side Downward Tee |
|
|
03F |
Vertical Corner Upward Tee |
|
|
03G |
Vertical Corner Left-Downward Tee |
|
|
03H |
Vertical Corner Right-Downward Tee |
|
|
03I |
Vertical Right Tee |
|
|
03J |
Vertical Left Tee |
|
|
03K |
Vertical Right-Downward Tee |
|
|
03L |
Vertical Left-Downward Tee |
|
|
04A |
Horizontal Cross |
|
|
04B |
Vertical Cross |
|
|
04C |
Vertical Upward Cross |
|
|
04D |
Vertical Downward Cross1 |
|
|
04E |
Vertical Downward Cross2 |
|
|
05A |
Left Reducer |
|
|
05B |
Right Reducer |
|
|
05C |
Middle Reducer |
|
|
06A |
Riser |
|
|
07A |
Vertical Adjustable Bend |
|
